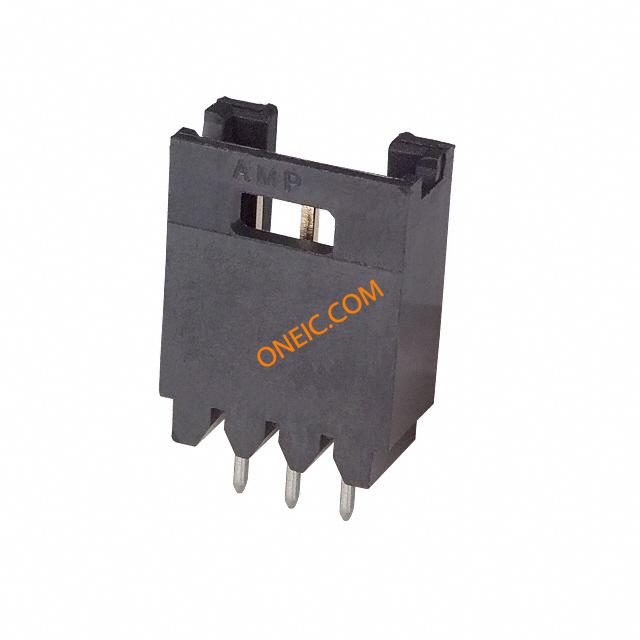

8-102202-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 3POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings HDR 1X03P VRT T/H Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 1ROW, 3WAY AMPMODUHeader,3Pos.,SingleRow,Shrouded,2.54mm(.100inch)CL,Vertical TE Connectivity AMPMODU Mod II 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MODII HDR SRST SHRD LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 额定电压 | :250V |
| 工作电压 | :250V | 最大额定电流 | 3A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 深度 | 5.82 mm |
| 间距 | 2.54 mm | 高度 | 13.94 mm |
| 重量 | 0.0079 | 包装方式 | Tube |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 引脚长度（针脚） | 0.13" | 外壳颜色 | Black |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 封装形式 | :Black Thermoplastic UL94V-0 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 10.67 mm |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 接触件端接 | :Through Hole Vertical |
| 位数 | 3 | 柱体长度（配合） | 6.1 mm |
| 安装孔直径 | 0.035" | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.3 mm | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 产品特性 | Breakaway |
| 制造商全称 | AMPMODU | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
