103688-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 3POS .1" UNLOAD ReceptacleAssembly,Thermoplastic Headers & Wire Housings 03 MTE RCPT HSG SR P Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 3 路直母电缆安装 PCB 连接器外壳 03 MTE RCPT HSG SR PLAIN .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	RoHSCompliant,ELVCompliant
无铅定义	Not relevant for lead free process	认证机构	CSA,UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

开关功能	Unlatched	供电电压	600 VAC
输入电阻	5000	连接器阻抗	刺破式压接 (IDC), 压接
最大额定电流	3/Contact A	保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	宽度	0.98mm
高度	2.49 mm	长度	0.298in
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
方向	直	排间距	2.54 mm
外壳样式	Receptacle	端接方式	IDC
触头类型	Female Socket	第二连接器	Without
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Crimp, Insulation Displacement Crimp (IDC)
安装样式	Free Hanging	排数	1
封装形式	Receptacle	插入件材料	磷青铜
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	7.56 mm	包装数量	1
面板安装类型	不带	主要材料	InterconnectSystem
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	配接方向	Without
触点数	3	接触件端接	Crimp
位数	3	兼容外壳尺寸（如TM-700等）	压接扣入式接触件
安装孔直径	不带	中心触点材料	2.54 [.100]
典型触点布局	同轴	静电放电屏蔽	不带

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	CAD图纸	3D CAD 模型
编码、键控	No	制造商全称	AMPMODU/MTESeries
产品子类型	Housing	矩阵（列×行）	0.100in.
适用产品/相关产品	AMPMODU 外壳

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

+105°C

文档与媒体

在线文档

103688-2?RQPN=103688-2

相关型号

104345-1

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 3POS VERT 15AU Headers & Wire Housings MOD II HEADER 3P 03 MODII HDR SRST B/A W/HLDWN

¥1.7568

详情

103080-1

te connectivity / amp

¥7.4880

详情

104348-1

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 3POS R/A GOLD

详情

8-102202-4

te connectivity / amp

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 3POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings HDR 1X03P VRT T/H Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 1ROW, 3WAY AMPMODUHeader,3Pos.,SingleRow,Shrouded,2.54mm(.100inch)CL,Vertical TE Connectivity AMPMODU Mod II 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MODII HDR SRST SHRD LF

¥5.1120

详情

146282-3

te connectivity / amp

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 3P BRKAWAY VERT HDR 1000 .100 inch AMPMODU Headers CONN HEADER B/A 3POS SL PCB TIN 03 MODII HDR SRST B/A .100CL 03 MODII HDR SRST B/A .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥0.5760

详情

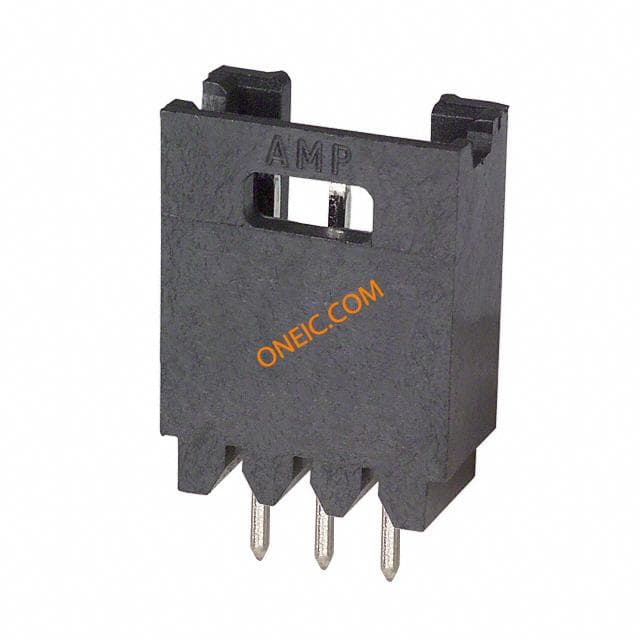

5-103080-1
