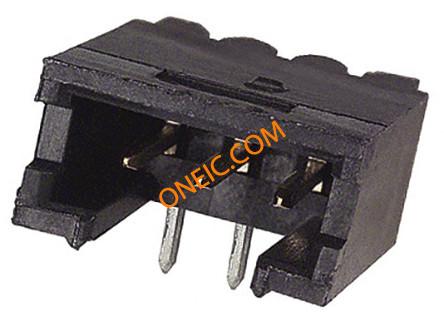

8-102203-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 3 POS 15AU AMPMODU II Header Right Angle 3P Headers & Wire Housings HDR 1X03P R/A T/H Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Header,ThroughHole;Shrouded;RightAngle;PhosphorBronze;Thermoplastic;3 03 MODII HDR SRRA SHRD LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 连接器阻抗 | 带有 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 750 Vrms |
机械参数
| 颜色 | Black | 深度 | 13.94 mm |
| 间距 | 2.54 mm | 高度 | 5.81 mm |
| 底座类型 | 带有 | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 端部尺寸（如SMD/SMT、14mm等） | 1.778 mm [ .07 in ] |
| 引脚样式 | 直角 | 排间距 | 2.54 mm |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.11" |
| 第一连接器 | 否 | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 行程角度 | Right | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 外壳材料（壳体） | 4- 面 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 10.67 mm |
| 包装数量 | 50 | 面板安装类型 | 通孔 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 3 |
| 端接表面处理 | 带罩 | 位数 | 3 |
| 柱体长度（配合） | 6.1 mm | 安装孔直径 | 0.035" |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 mm |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
| 端接镀层厚度 | 100 – 200 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 产品特性 | Breakaway |
| 钥匙类型 | 否 | 制造商全称 | AMPMODU |
| 产品子类型 | Headers | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | +105°C | 封装热阻 | 1.397 mm [ .055 in ] |
文档与媒体
