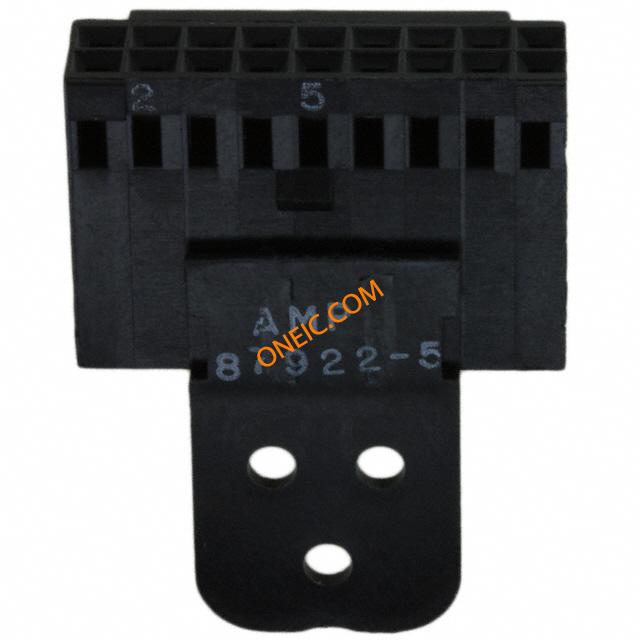

87922-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Not applicable / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

电阻	12 mΩ	供电电压	250 VAC
输入电阻	5000	连接器阻抗	制动器闭锁
最大额定电流	3	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	7.32 mm [ .288 in ]	长度	22.86 mm [ .9 in ]
包装方式	Bulk	壳体颜色	黑色
导线线规	20-32 AWG	排间距	0.100" (2.54mm)
触头类型	Male or Female	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	2	插入件材料	磷青铜
锁定特性	带有	壳体材料	热塑塑料
电机数量	1	包装数量	100
端接样式	插座	触点数	18
接触件端接	Crimp	位数	18
安装孔直径	带有	静电放电屏蔽	带有
第一连接器安装特征	是

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	Strain Relief
产品子类型	连接器

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105

相关型号

103166-7

te connectivity / amp

Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD .100CL

¥24.4120

详情

104353-9

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS R/A DUAL Headers & Wire Housings 18 MODII HDR DRRA B/A W/HLDWN 18 MODII HDR DRRA B/A W/HLDWN 18 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,

¥6.5960

详情

104350-9

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL 30AU

详情

103169-7

te connectivity / amp

Conn Shrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 18POS 30AU Headers & Wire Housings 18 MODII HDR DRST SHRD .100CL .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SHRD .100CL

¥9.8600

详情

104352-9

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL TIN

详情

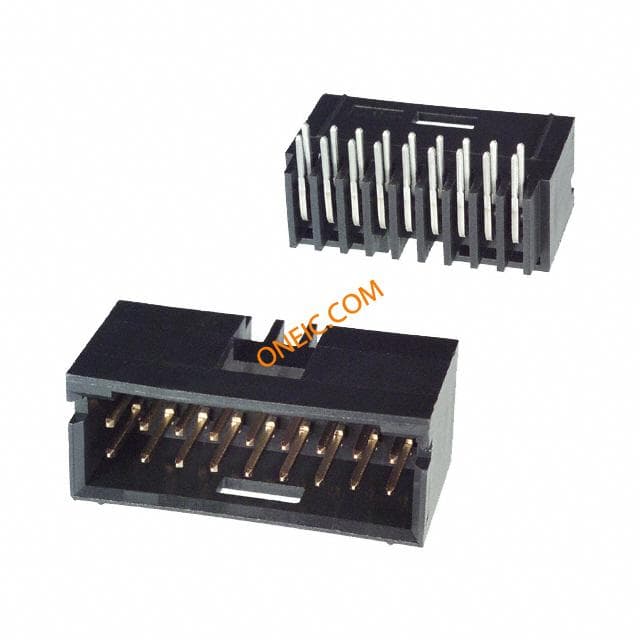

5-103166-7

te connectivity / amp

Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD LF

¥17.2720

详情

146130-8

te connectivity / amp

Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 18POS DUAL SMD Headers & Wire Housings 18 MODII HDR DRST SFMNT B/A Conn Unshrouded Header HDR 18 POS 2.54mm Solder ST SMD Search Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRST SFMNT B/A

¥5.5080

详情

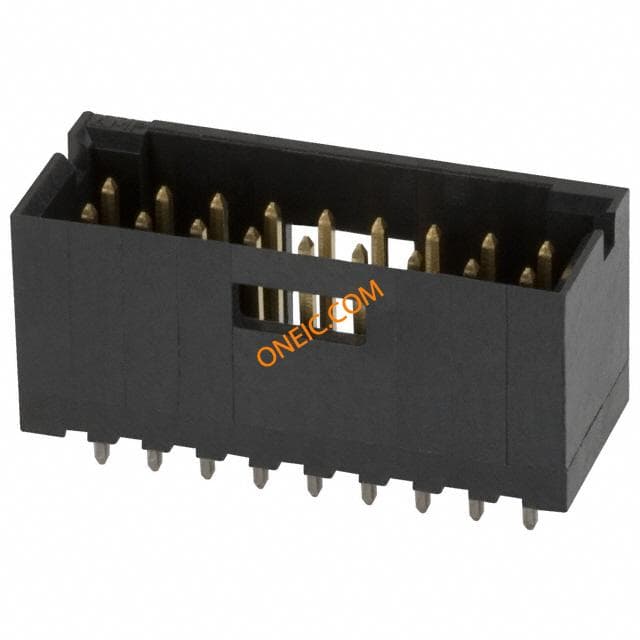

5-103168-7
