103166-7

点击放大查看

103166-7

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 18POS 30AU Headers & Wire Housings SHROUDED RA DUAL 18 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 18Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 18 MODII HDR DRRA SHRD .100CL
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A26774
标准包装规格192产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量192

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
击穿电压750最大额定电流3
绝缘电阻5,000保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型带有锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器No
第二连接器With触点形状Square
外壳颜色Black安装类型Right Angle
连接器类型Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式标准
排数2封装形式4-Sided
外壳材料（壳体）4- 面插入件材料磷青铜
锁定特性Detent Windows外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度1.68 [0.066]安装特性Without
包装数量192面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一连接器类型带罩第一触头极性Pin (Male)
外径.64 mm [ .025 in ]触点数18
端接表面处理带有位数18
柱体长度（配合）8.08 mm安装孔直径带有
中心触点材料2.54 x 2.54 [.100 x .100]接触长度 - 配合8.08 [0.318]
表面贴装焊盘尺寸No端子柱长度3.43 [0.135]
接触镀层厚度30µin (0.76µm)安装面板厚度With
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
制造商全称AMP产品子类型Header
选择性装载No加载位置数All

环境参数

密封等级不带温度No
防护等级带罩工作温度-55 – +105
封装热阻1.397 mm [ .055 in ]结工作温度否

文档与媒体

在线文档
103166-7

相关型号

1-87456-3

1-87456-3

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 DUAL ROW Headers & Wire Housings 18 HSG COMP DR .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG COMP DR .100CL

¥6.3240
详情
87922-5

87922-5

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD

¥24.8200
详情
1-87631-4

1-87631-4

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Headers & Wire Housings 18 P HOUSING Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG DR MKRD .100 POL

¥4.9640
详情
102448-7

102448-7

te connectivity / amp

Conn IDC Connector RCP 18 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 18POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 18P 22-20 Conn IDC Connector RCP 18 POS 2.54mm IDT ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 AMPMODU MT ASSY DR .100CL

¥36.1556
详情
534206-9

534206-9

te connectivity / amp

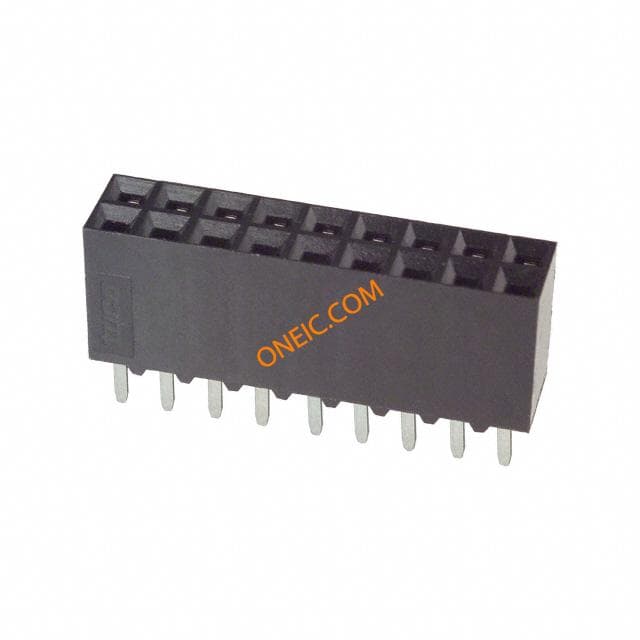

Conn Socket Strip SKT 18 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 18POS .100 VERT DUAL Headers & Wire Housings REC 2X09P VRT T/H 1500 Conn Socket Strip SKT 18 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 18 MODII VRT DR CE 100/115

¥11.4920
详情
535598-9

535598-9

te connectivity / amp

Conn Socket Strip SKT 18 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 18POS .100 DUAL T/H AU 18 MODIV VRT DR CE RCPT ASSY

详情
5-102398-7

5-102398-7

te connectivity / amp

Conn IDC Connector RCP 18 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 18POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 18P 26-22 Conn IDC Connector RCP 18 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 18Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, HEADER, IDC, 2.54MM, 18WAY WIRE-BOARD CONN RECEPTACLE 18POS, 2.54MM MTMODUCONNASSY,18AMPMODUMTASSYDR.100CL 18 AMPMODU MT ASSY DR .100CL

¥27.1800
详情
5-534206-9

5-534206-9

te connectivity / amp

Conn Socket Strip SKT 18 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 18POS .100 VERT DUAL Headers & Wire Housings REC 2X09P VRT T/H 18 MODII VRT DR CE 100/115 18 MODII VRT DR CE 100/115 Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, AMPMODU 18 Position Dual Row Vertical Receptacle Assembly

¥10.5400
详情
3-87977-4

3-87977-4

te connectivity / amp

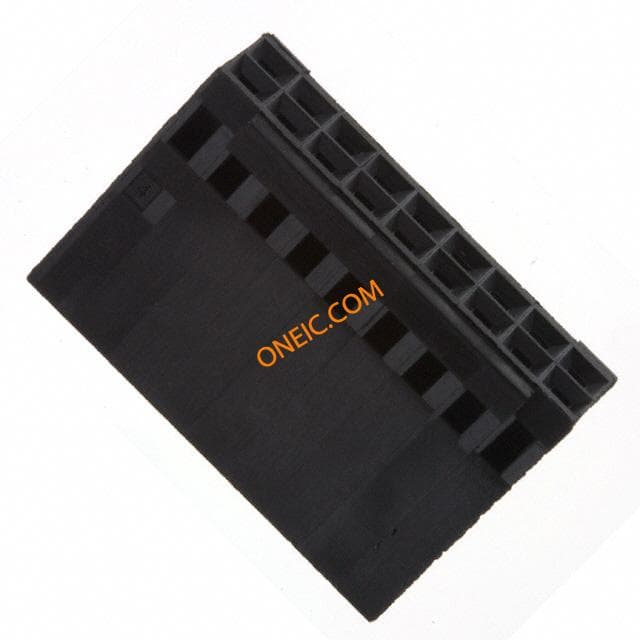

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Headers & Wire Housings 18 HSG COMP DR .1POL Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG COMP DR .100 POL
