首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）1-87631-3

点击放大查看

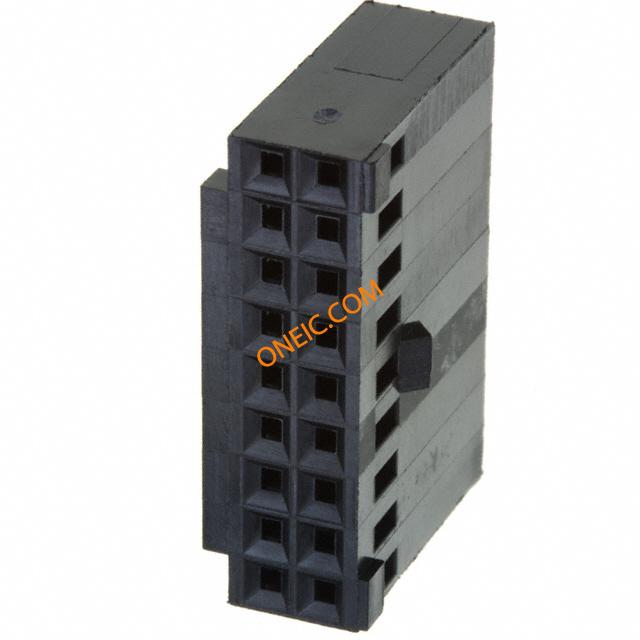

1-87631-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POL DUAL Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 18POS, 2.54MM 18 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

最大额定电流

3/Contact A

最小供电电压

250VAC

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	重量	0
包装方式	Bulk	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	排数	2
触头材料	:-	壳体材料	Nylon
总长度	22.86 mm	触点数	18
接触件端接	Crimp	位数	18

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	:Unstamped Housing

环境参数

工作温度

-65C to 105C
