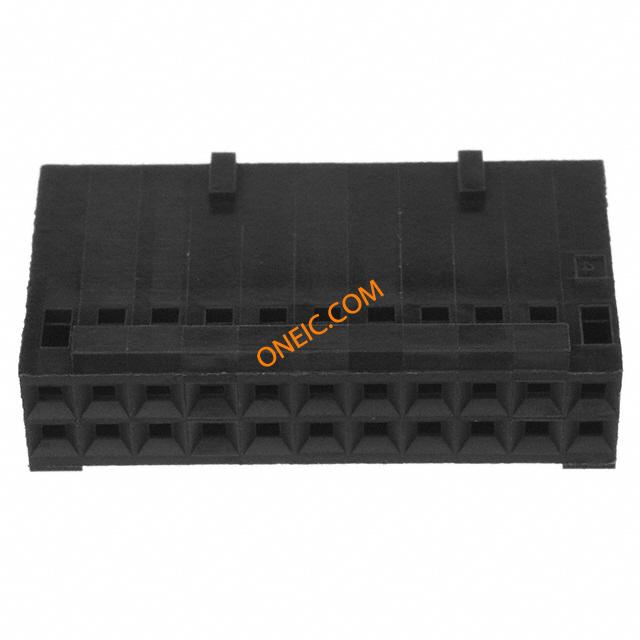

1-87631-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 22POS .100 POL DUAL Headers & Wire Housings 22 MODIV HSG COMP DR Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 22Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 22 MODIV HSG COMP DR .100 POL
分类	连接器解决方案矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	27.94 mm [ 1.1 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	触头材料	Phosphor Bronze
壳体材料	Nylon	包装数量	1
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	22	接触件端接	Crimp
位数	22	兼容外壳尺寸（如TM-700等）	公端
安装孔直径	带有	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	抽头/步进数	2
其他规格	否	应用细节	Board to Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

相关型号

1-104353-1

te connectivity / amp

Conn Unshrouded Header HDR 22 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 22POS R/A DUAL

详情

103169-9

te connectivity / amp

Conn Shrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 22POS DUAL VERT GOLD

详情

1-825440-1

te connectivity / amp

Conn Unshrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADR 22POS DUAL VERT GOLD Headers & Wire Housings MOD 2 PINHDR 2X11P. MOD 2 PINHDR 2X11P.

¥8.8869

详情

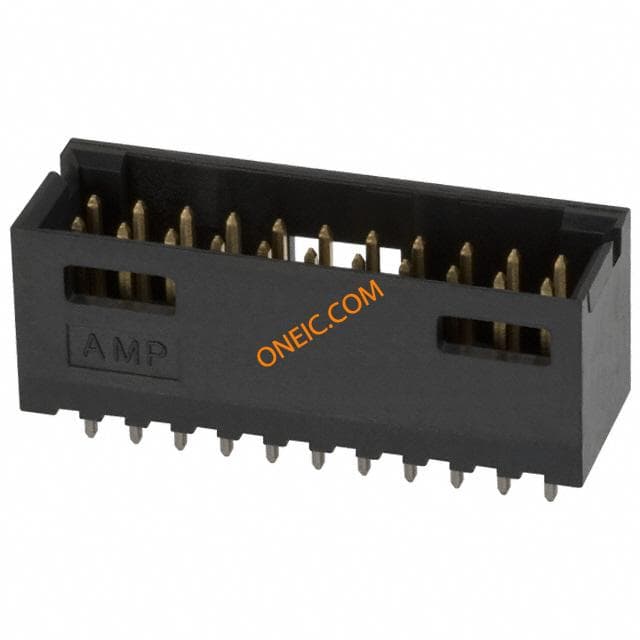

5-102618-9
