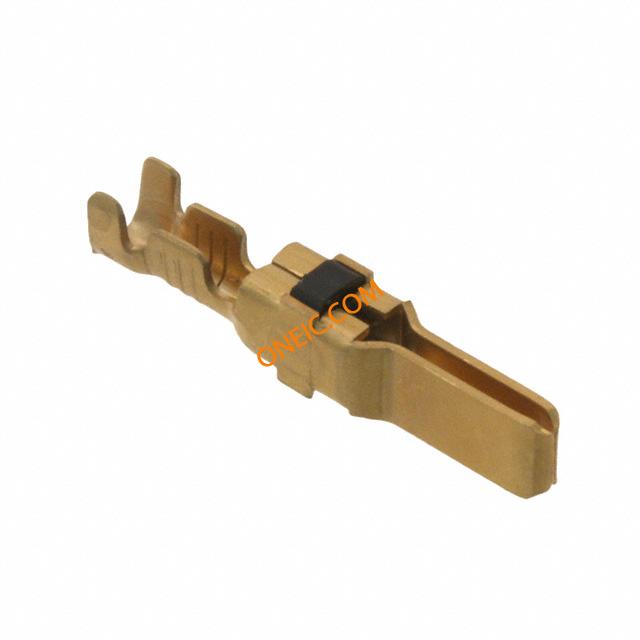

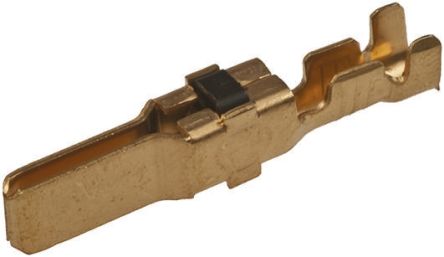

66262-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Pin & Socket Connectors MALE CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16-12AWG, CRIMP Contact,Multimate;PowerContact;Copper;Grounding;Gold(30);14-12AWG TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.) |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85151100 | 抗辐射加固 | No |
电气参数
| 输出电流 | 35A | ||
机械参数
| 深度 | 5.58 mm | 高度 | 6.09 mm |
| 长度 | 31.62mm | 重量 | 0.002 |
| 镀层 | Gold | 材料（通用） | Copper |
| 包装方式 | Bulk | 导线类型 | DiscreteWire |
| 出线方向 | No | 导线线规 | 12-16 AWG |
| 端接方式 | Crimp | 触点形式 | 1Power |
| 触头类型 | Ground | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Copper |
| 总长度 | 34.79 mm | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 绝缘直径 | 0.135in.to0.160in. |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 16-12 |
产品信息
| 类型 | Power, Stamped | 等级 | Commercial |
| 连接器性别 | PIN | 系列 | Type XII |
| 制造商全称 | AMPBrand | 产品子类型 | Contacts |
| 射频系列/标准 | 66262 | 适用产品/相关产品 | :G Series, M Series, CPC Connectors |
相关型号
208484-1
te connectivity / amp
Conn Metal Shell CPC PIN 7 POS ST Cable Mount 7 Terminal 1 Port Standard Circular Connector PLUG REVERSE 28-7 CPC Connectors CONN PLUG CMC HSING 28-7 REV Connector,MetalShellCPC,PlugAssy,7Pos. Conn Metal Shell CPC PIN 7 POS ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR, SIZE 28 Connector;MetalShellCPC;PlugAssy;7Pos.;Sz.28;Series3;FreeHanging TE Connectivity Series 3 系列 7路 自由悬挂 直向 连接器 插头 , 公触点, 螺纹接合 CMC PLUG ASSEMBLY,SZ 28
207486-5
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Standard Circular Connector SIZE 23-16 RECEPT CPC W/SEAL CPC Connectors CONN RCPT CPC 16POS Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = Receptacle16 Positions12 Signal Positions4 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC SIZE 23-16 RECEPT,CPC,W/SEAL
206137-1
te connectivity / amp
Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector STD SQUARE RECP 23-7 Conn CPC M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 7WAY ConnectorHousing;CPCReceptacle;7Pos.;Sz.23;Series3;PanelMnt;StdSex Receptacle CPC3 Poles=7, accepts male contacts / with flange, 206137-1, TE Connectivity TE Connectivity 7路 面板安装 直向 连接器 插座 , 公触点 23-7 RECEPT STD SEX
208496-1
te connectivity / amp
Conn Metal Shell CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 3 Connector,MetalShellCPC,PlugAssy,3Pos. Standard Circular Connector CMC PLUG ASSEMBLY SZ Conn Metal Shell CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:HousingHousing Type = Plug3 Positions0 Signal Positions3 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;PlugAssy;3Pos.;Sz.22;Series3;FreeHanging CMC PLUG ASSEMBLY,SZ 22
206613-5
te connectivity / amp
Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Standard Circular Connector RECEPT SZ 23-22 W/SEAL CPC Connectors CONN RCPT CPC 22POS STD SER 4 Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ 23-22,CPC,W/SEAL
208481-1
te connectivity / amp

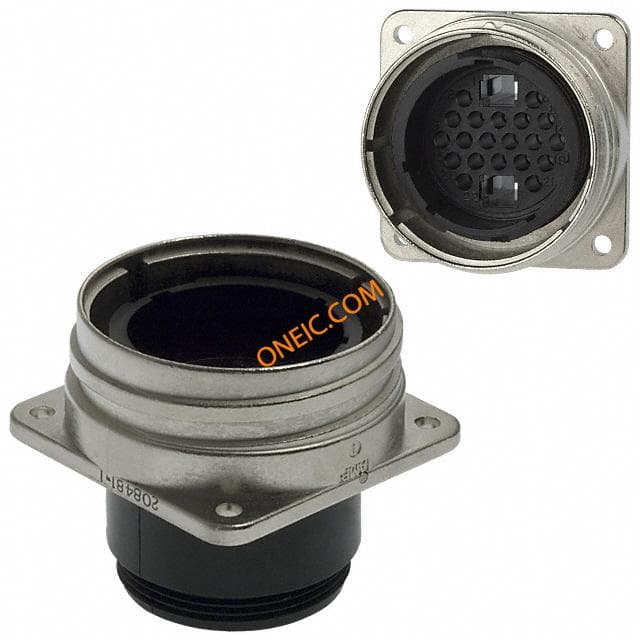

Conn Metal Shell CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port CPC Connectors CONN RECEPT CMC 22POS STD SER 4 Standard Circular Connector RECPT STD 28-22M Conn Metal Shell CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;Recept.Assy;22Pos.;Sz.28;Series4;PanelMount CMC RECPT ASSEMBLY SIZE 28
206613-1
te connectivity / amp
Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port CPC Connectors CONN RECEPT CPC 22POS STD SER 4 22 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECPT SQUARE 23-22M Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCRecept.Assy;22Pos;Sz23;Series4;PanelMnt;StdSex Connector: circular; Series: CPC Series 4; socket; male; UL94V-0 Receptacle CPC4 Poles=22, accepts male contacts / with flange, 206613-1, TE Connectivity TE Connectivity 22路 面板安装 直向 连接器 插座 , 公触点 RECEPT ASSY,SZ 23-22,CPC
206036-2
te connectivity / amp
Conn CPC PIN 3 POS ST Panel Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS STD SER 3 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector STD SQUARE RECP 17-3 Conn CPC PIN 3 POS ST Panel Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 3WAY ConnectorHousing;CPCReceptacle;3Pos.;Sz.17;Series3;PanelMnt;StdSex Receptacle CPC3 Poles=3, accepts male contacts / with flange, 206036-2, TE Connectivity TE Connectivity 3路 面板安装 直向 连接器 插座 , 公触点 CPC RECEPTACLE SIZE 17-3
206613-3
te connectivity / amp
Conn CPC PIN 22 POS ST Cable Mount 22 Terminal 1 Port CPC Connectors CONN RECEPT CPC 22POS STD SER 4 ConnectorHousing,CPCReceptacle,22Pos. Standard Circular Connector RECPT F.H. 23-22M Conn CPC PIN 22 POS ST Cable Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR RCPT SIZE 23 22POS FREE HANGING ConnectorHousing;CPCReceptacle;22Pos.;Sz.23;Series4;FreeHang;StdSex RECEPT SZ 23,CPC
90145-2
te connectivity / amp
Connector Accessories Tool Fram Die Set Punches & Dies DIE FOR 69710-1 DIE W/O 69710-1 16 F IS7175 Tool Fram Die Set DIEW/O69710-116FIS7175 Crimping dies, 90145-2, TE Connectivity
207486-1
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 4 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECPT SQUARE 23-16M Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SIZE 23, CPC, 12S-4P ConnectorHousing;CPCReceptacle;16Pos;Sz.23;Series4;PanelMnt;StdSex Connector: circular; Series: CPC Series 4; socket; male; UL94V-0 Receptacle CPC4 Poles=16, accepts male contacts / with flange, 207486-1, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插座 SIZE 23-16 RECEPTACLE,CPC
211825-1
te connectivity / amp
Conn CPC PIN 13 POS ST Panel Mount 13 Terminal 1 Port CPC Connectors CONN RECEPT CPC 13POS STD SER 4 13 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECPT SQUARE 23-13M Conn CPC PIN 13 POS ST Panel Mount 13 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 138 Signal Positions5 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT SIZE 23, 13POS, PANEL ConnectorHousing;CPCReceptacle;13Pos.;Sz.23;Series4;PanelMnt;StdSex Connector: circular; Series: CPC Series 4; socket; male; UL94V-0 Receptacle CPC4 Poles=13, accepts male contacts / with flange, 211825-1, TE Connectivity TE Connectivity 13路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 23-13
206426-1
te connectivity / amp
Conn CPC M 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 3 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-3 Conn CPC M 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, PIN CONTACT, 3WAY ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series3;FreeHang;RevSex Plug "reverse sex" CPC3 Poles=3, accepts male contacts / Free hanging/cable mount, 206426-1, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-3
208479-1
te connectivity / amp
Conn Metal Shell CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Circular Plastic Connectors CONN RECEPT CMC 16POS STD SER 4 Connector,MetalShellCPC,Recept.Assy16Pos Standard Circular Connector RECPT STD 28-16M Conn Metal Shell CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;Recept.Assy;16Pos.;Sz.28;Series4;PanelMount CMC RECEPTACLE ASSY,SIZE 28
90382-2
te connectivity / amp

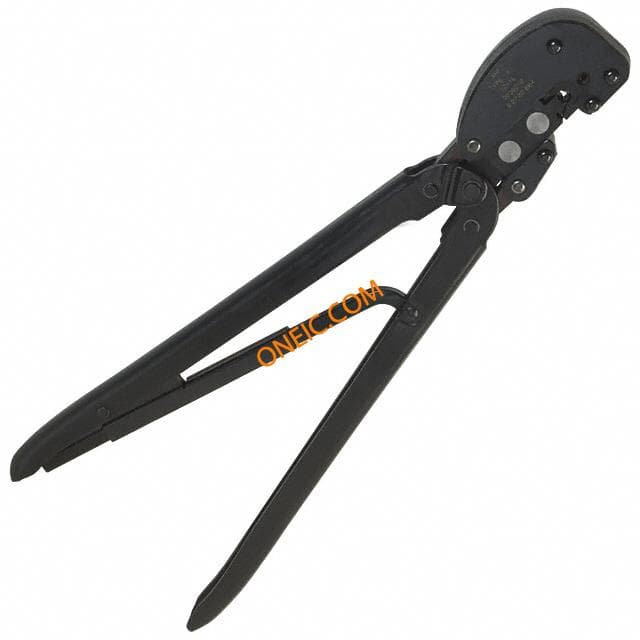

General Hand Tool Used In The Aircraft And Military Industries Crimpers CRIMP TOOL 12-16 TOOL 12-16AWG CPC SERIES 3 CRIMP Certicrimp tool,16-12awg Crimp Siz Crimper;Ratchet;16-12AWG;CPCMSeries,TypeXIIContacts;CERTI-CRIMPII TE Connectivity CERTI-CRIMP 系列 Multimate Type XII Contacts 压接工具 , 适用于16 → 12 AWG 线规格 HEAVY HEAD HAND TOOL TX11
