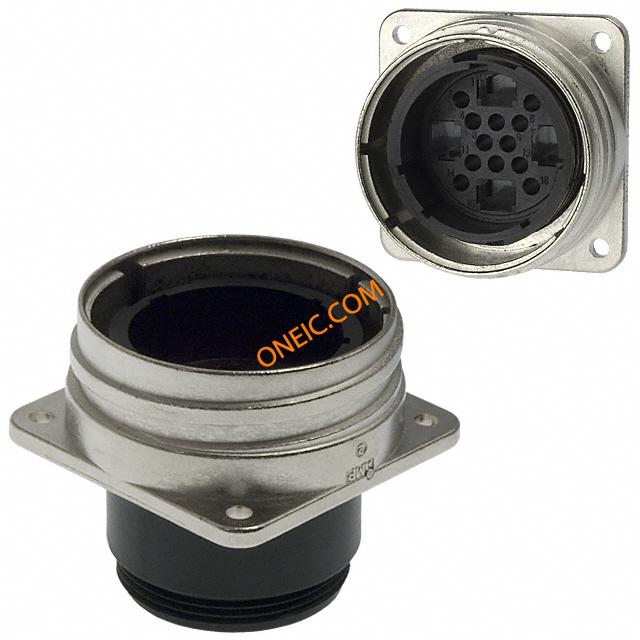

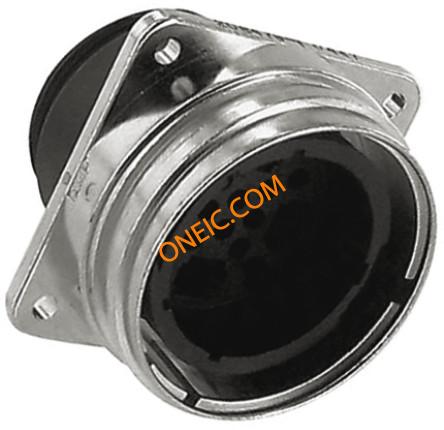

208479-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Circular Plastic Connectors CONN RECEPT CMC 16POS STD SER 4 Connector,MetalShellCPC,Recept.Assy16Pos Standard Circular Connector RECPT STD 28-16M Conn Metal Shell CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;Recept.Assy;16Pos.;Sz.28;Series4;PanelMount CMC RECEPTACLE ASSY,SIZE 28 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 4 |
| 其他名称 | A16076 | 子类别 | Connector Circular |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电阻 | None | 防溅等级 | 无 |
| 通道数量 | 12.0 | 连接器类型 - 电压输入 | 标准 |
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 28 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 28 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 (12), 4 Power |
| 触头类型 | Pin | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Housing |
| 紧固类型 | Threaded Coupling | 外壳涂层 | Nickel |
| 安装样式 | Flange with Mounting Holes | 引脚数 | 4 |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Receptacle |
| 连接器用途 | Threaded | 壳体材料 | Thermoplastic - GF |
| 包装数量 | 10 | 主要材料 | CircularPlasticConnector |
| 端接样式 | 插针 | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 16 |
| 端接表面处理 | 带有 | 绝缘直径 | 0.22" |
| 位数 | 4.0 | 外壳尺寸-插件 | Metal |
| 安装孔直径 | 0.145" | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 典型触点布局 | 4Power,12Signal | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | RCP | 系列 | Series 4 |
| 排列方式 | 28-16M | 制造商全称 | Series4 |
| 产品子类型 | Housings | 其他规格 | Without |
| 应用细节 | Commercial | ||
环境参数
| 工作范围 | 不密封 | 防护等级 | Without |
