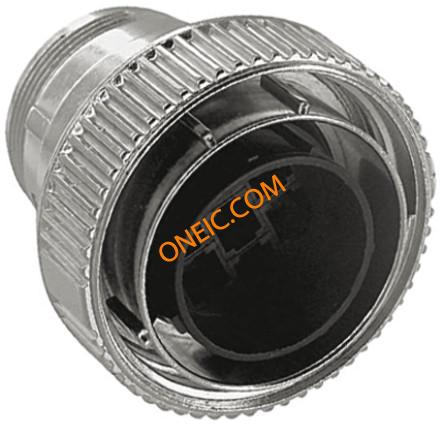

208484-1
| 制造商 | TE Connectivity Ltd. |

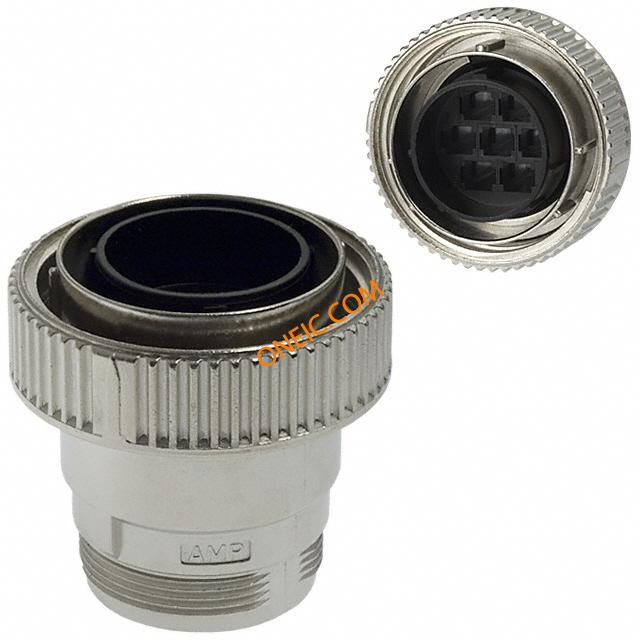

| 描述 | Conn Metal Shell CPC PIN 7 POS ST Cable Mount 7 Terminal 1 Port Standard Circular Connector PLUG REVERSE 28-7 CPC Connectors CONN PLUG CMC HSING 28-7 REV Connector,MetalShellCPC,PlugAssy,7Pos. Conn Metal Shell CPC PIN 7 POS ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CONNECTOR, CIRCULAR, SIZE 28 Connector;MetalShellCPC;PlugAssy;7Pos.;Sz.28;Series3;FreeHanging TE Connectivity Series 3 系列 7路 自由悬挂 直向 连接器 插头 , 公触点, 螺纹接合 CMC PLUG ASSEMBLY,SZ 28 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 0 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.002 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 外壳尺寸 | 28 |
| 方向 | Keyed | 外壳样式 | Plug |
| 螺纹尺寸 | 1-3/16 - 18 UNEF-2A | 触点尺寸 | 7 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Free Hanging |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Plug |
| 连接器用途 | Threaded | 插入角度 | :28-7 |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 7 | 绝缘直径 | 5.59 [0.220] |
| 位数 | 7 | 外壳尺寸-插件 | Metal |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | PL | 系列 | CPC |
| 产品特性 | ReverseGender | 预加载 | No |

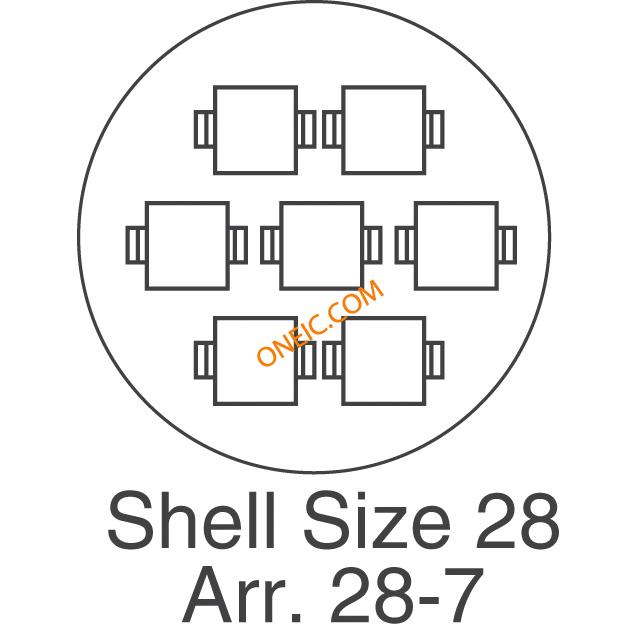

| 排列方式 | 28-7 | 制造商全称 | Series3 |
| 产品子类型 | Connectors | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
相关型号
66261-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Standard Circular Contacts PIN CONTACT 16,14-12 tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 14-12AWG, CRIMP MaleContactAssembly;16-12AWG MALE CONTACT ASSY. (L.P.)
66261-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;FINISH=SILVERW/LUBRICANTADDED TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于G 系列以及 CPC 和 M 系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8AWG silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 10-8AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE MULTIMATE Male Type XII Series 10-8 AWG Discrete Wire Crimp Power Pin Assembly TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
208485-1
te connectivity / amp
Conn Metal Shell CPC SKT 7 POS ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN RECEPT CPC 7POS REV SER 3 Connector,MetalShellCPC,Recept.Assy,7Pos Standard Circular Connector RECP SQUARE REV 28-7 Conn Metal Shell CPC SKT 7 POS ST Panel Mount 7 Terminal 1 Port Product Highlights:Connector7 PositionReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 28, 7POS, PANEL Connector;MetalShellCPC;Recept.Assy;7Pos.;Sz.28;Series3;PanelMount TE Connectivity Series 3 系列 7路 法兰安装 直向 连接器 插座 , 母触点, 螺纹接合 CMC RECPT ASSEMBLY SIZE 28
66259-2
te connectivity / amp

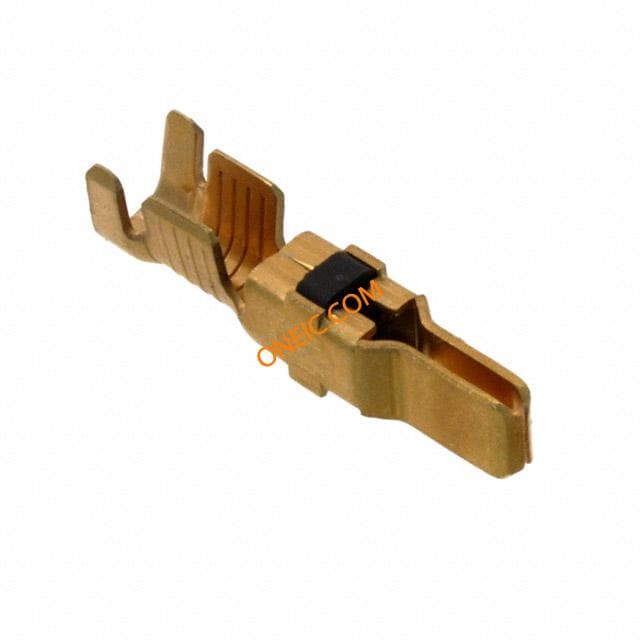

Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG GOLD CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8 AWG gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 10-8AWG CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 5÷8mm2; Type XII; gold plated; crimped MULTIMATE 10 - 8 AWG Gold (30) Crimp Contact Crimp Contact 35 A, 66259-2, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-5
te connectivity / amp

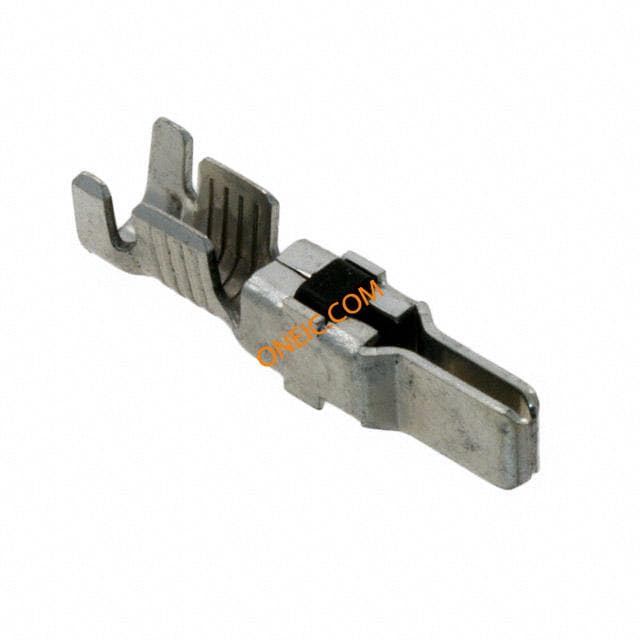

Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP PIN CONTACT XII TYPE Standard Circular Contacts PIN CONTACT 10 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG10 CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 5÷6mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 10 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66261-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16 TO 12 AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 1.25÷3mm2; Type XII; gold plated; crimped MULTIMATE Male Type XII Series 14-12 AWG Discrete Wire Crimp Power Pin Assembly Crimp Contact 35 A, 66261-2, TE Connectivity TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66262-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors LP CONTACT ASSY MALE Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALECONTACTASSEMBLY,16AWG,14-12AWG Earth pin CPC CPC, 66262-4, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CMC 系列 4 连接器, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66262-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Pin & Socket Connectors MALE CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16-12AWG, CRIMP Contact,Multimate;PowerContact;Copper;Grounding;Gold(30);14-12AWG TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP Standard Circular Connector PIN CONTACT 10 AWG tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALECONTACTASSEMBLY,TYPEXII,10AWG MALE CONTACT ASSY. (L.P.)
66261-5
te connectivity / amp

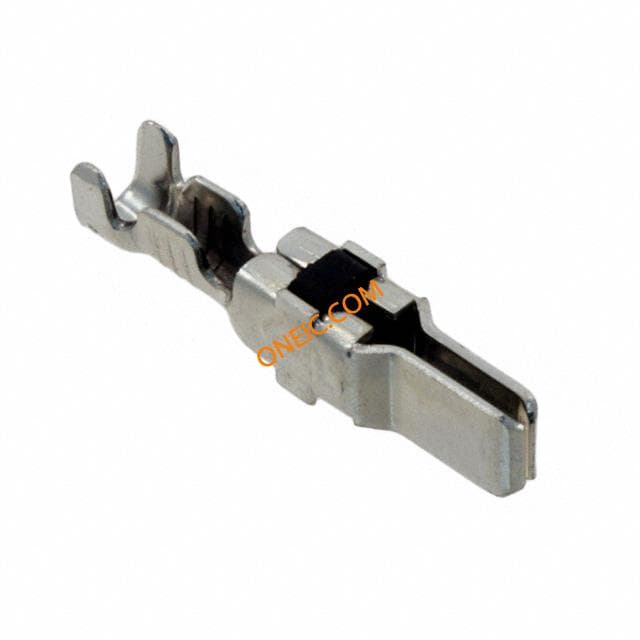

Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Pin contact male 14-12 AWG type XII Sn Standard Circular Connector PIN CONTACT 16,14-12 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 1.25÷1.4mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 15A 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 14 → 12 AWG，16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
