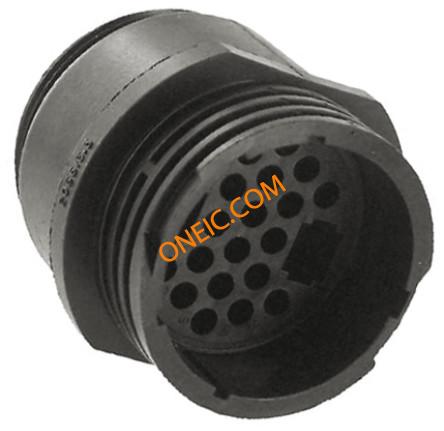

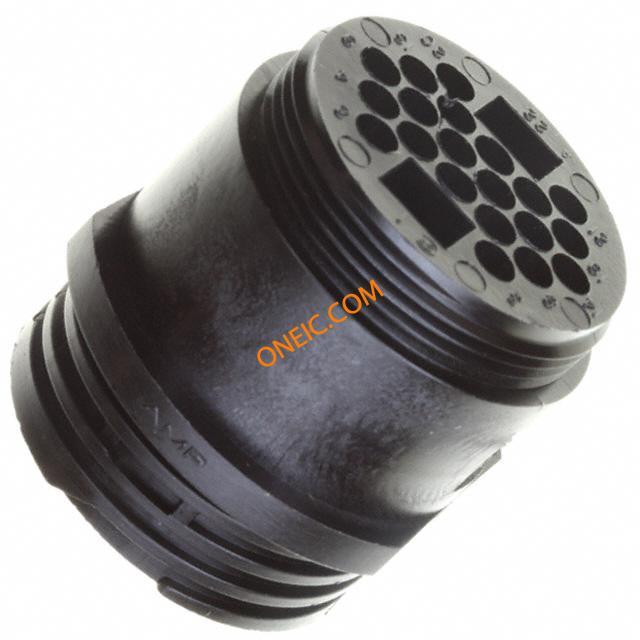

206613-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 22 POS ST Cable Mount 22 Terminal 1 Port CPC Connectors CONN RECEPT CPC 22POS STD SER 4 ConnectorHousing,CPCReceptacle,22Pos. Standard Circular Connector RECPT F.H. 23-22M Conn CPC PIN 22 POS ST Cable Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR RCPT SIZE 23 22POS FREE HANGING ConnectorHousing;CPCReceptacle;22Pos.;Sz.23;Series4;FreeHang;StdSex RECEPT SZ 23,CPC |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 20 | ||
机械参数
| 深度 | 44.02 mm | 高度 | 38.23 mm |
| 密封型 | No | 重量 | 0.032 |
| 直径 | 44.02 mm | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 2Power/20Signal |
| 触点尺寸 | 16 (20), 2 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Receptacle |
| 连接器用途 | Threaded | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 41.53 mm |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 22 |
| 位数 | 22 | 外壳尺寸-插件 | All Plastic |
| 导体绝缘 | 5.59 [0.220] | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-22M | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 4 |
| 预加载 | No | 产品子类型 | Connector |
| 电路数 | 2 (Power)/20 (MultiMate) | 射频系列/标准 | 206613 |
| 其他规格 | Without | 适用产品/相关产品 | Pin Contacts |
