点击放大查看

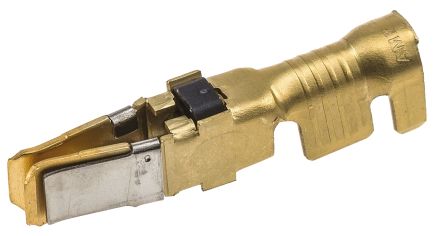

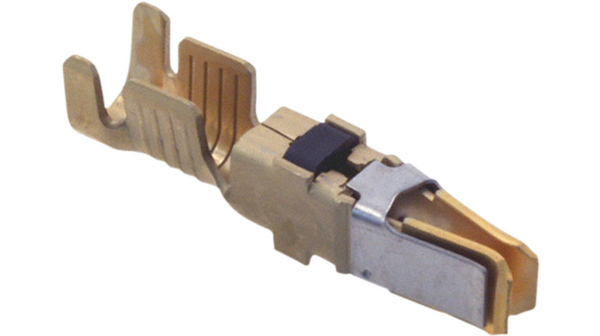

66741-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 10AWG GOLD CRIMP Type XII Series Size 16 Female Circular Connector Contact, Crimp,Wire size 10AWG Pin & Socket Connectors SOCKET CONTACT 10 gold Type XII Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, 10-8AWG CPCTYPEXIICONTACTFORSERIES3;FEMALE Contact; female; 5÷6mm2; Type XII; gold plated; crimped Crimp Contact 35 A, 66741-6, TE Connectivity TE Connectivity Type XII 系列 母 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 10 AWG 线规格 TYPE XII FEMALE CONT (L.P.) |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 最大额定电流 | 35 A | ||
机械参数
| 深度 | 7.11 mm | 高度 | 7.62 mm |
| 长度 | 32.18mm | 重量 | 0.27 |
| 镀层 | Gold | 材料（通用） | Copper |
| 包装方式 | Bulk | 出线方向 | No |
| 导线线规 | 10 AWG | 端接方式 | Crimp |
| 触点形式 | 1Power | 触点尺寸 | 16 |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 材料表面处理 | :- |
| 触头材料 | Copper | 总长度 | 32.18 mm |
| 包装数量 | 8 | 连接器 - 电缆 | contact |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Gold | 触点数 | 1 POS |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | :10AWG | 线规或范围 - mm² | :8.3mm² |
| 触点材料 - 镀层 | gold plated | 外径-未扩张 | :5.59mm |
产品信息
| SPG | 8 | 类型 | Power, Stamped |
| 连接器性别 | SKT | 系列 | Type XII |
| 产品子类型 | Contacts | 适配器系列 | Type XII |
| 单元数量 | 1 | 射频系列/标准 | 66741 |
| 适用产品/相关产品 | :Type XII Series Connectors | ||
环境参数
| 工作温度 | :105°C | ||
