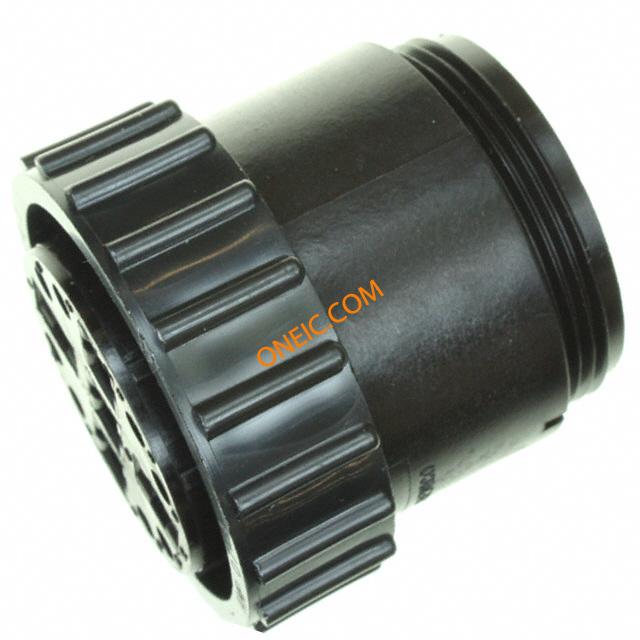

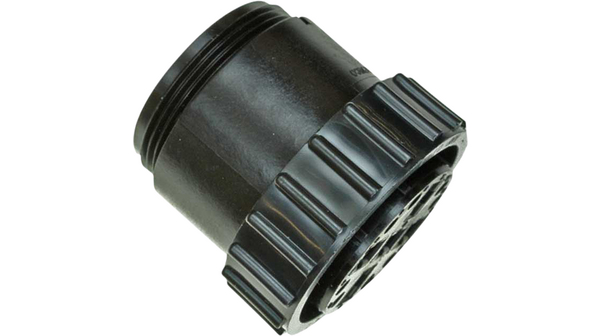

211824-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 13 POS ST Cable Mount 13 Terminal 1 Port CPC Connectors CONN PLUG CPC 13POS STD SER 4 Plug Assy size 23, 13 way Pin A CPC Standard Circular Connector PLUG 23-13M Conn CPC SKT 13 POS ST Cable Mount 13 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 138 Signal Positions5 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCPlugAssy;13Pos.;Sz.23;Series4;FreeHang;StdSex Plug CPC4 Poles=13, accepts female contacts / Free hanging/cable mount, 211824-1, TE Connectivity TE Connectivity Series 4 系列 13路 自由悬挂 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY 23-13 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V ac | 极数 | 13 |
| 防溅等级 | 无 | 通道数量 | 8 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 23 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 (8), 5 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 线径 | 3.81 mm [ .15 in ] |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 引脚数 | 5 |
| 外壳材料（壳体） | 插头 | 连接器样式 | Plug |
| 壳体材料 | Thermoplastic | 包装数量 | 100 |
| 端接排数 | 压接 | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | black |
| 配接方向 | Keyed | 触点数 | 13 |
| 端接表面处理 | 带有 | 位数 | 13 |
| 外壳尺寸-插件 | All Plastic | 导体绝缘 | 5.59 [0.220] |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 4 |
| 预加载 | No | 产品子类型 | Connector |
| 电路数 | 5 (Power)/8 (MultiMate) | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | +105°C |
