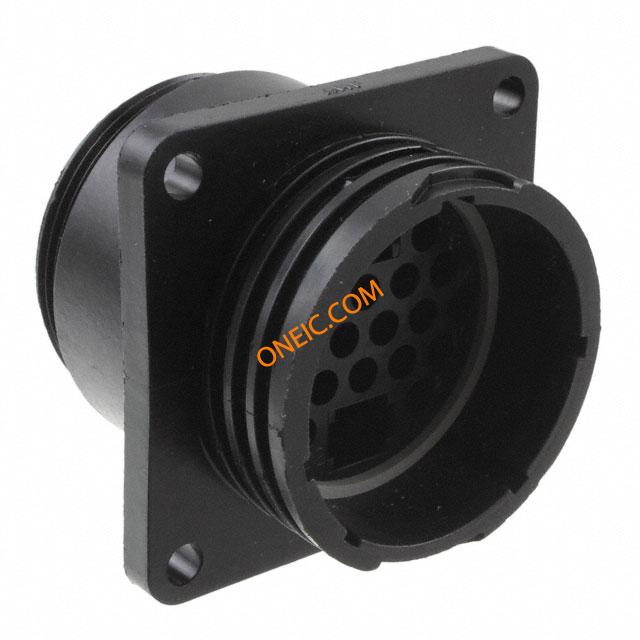

点击放大查看
206613-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Standard Circular Connector RECEPT SZ 23-22 W/SEAL CPC Connectors CONN RCPT CPC 22POS STD SER 4 Conn CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ 23-22,CPC,W/SEAL |
| 分类 |
商业参数
| 交货时间 | 42 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 浸入 | 通道数量 | 20 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 深度 | 44.45 mm | 高度 | 44.45 mm |
| 密封型 | Yes | 外形尺寸(长x宽) | 23 |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 壳体颜色 | 黑色 | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Receptacle | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | 20Signal/2Power | 触点尺寸 | 16 (20), 2 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 线径 | 3.81 mm [ .15 in ] |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 引脚数 | 2 |
| 外壳材料（壳体） | 母端, 母端 | 连接器样式 | Receptacle |
| 壳体材料 | Thermoplastic | 总长度 | 41.53 mm |
| 包装数量 | 1 | 面板安装类型 | Square Flange |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 22 |
| 端接表面处理 | 带有 | 位数 | 22 |
| 外壳尺寸-插件 | All Plastic | 导体绝缘 | 5.59 [0.220] |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-22 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 预加载 | No | 产品子类型 | Connectors |
| 电路数 | 2 (Power)/20 (MultiMate) | 射频系列/标准 | 206613 |
| 其他规格 | Without | 适用产品/相关产品 | Pin Contacts |
环境参数
| 密封等级 | Peripheral | 工作范围 | 密封 |
| 防护等级 | 外围设备 | ||
