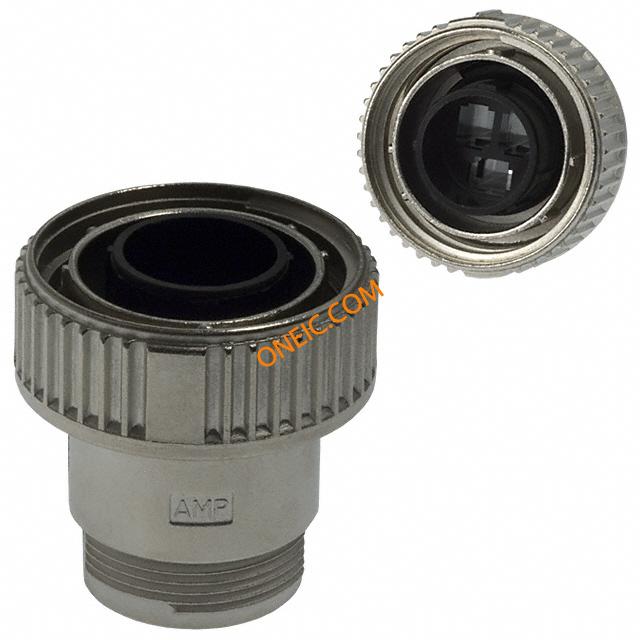

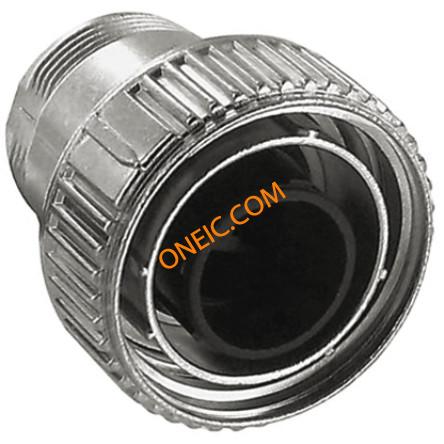

208496-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS REV SER 3 Connector,MetalShellCPC,PlugAssy,3Pos. Standard Circular Connector CMC PLUG ASSEMBLY SZ Conn Metal Shell CPC PIN 3 POS ST Cable Mount 3 Terminal 1 Port Product Highlights:HousingHousing Type = Plug3 Positions0 Signal Positions3 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;PlugAssy;3Pos.;Sz.22;Series3;FreeHanging CMC PLUG ASSEMBLY,SZ 22 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 0 |
| 连接器类型 - 电压输入 | 反向 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 22 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳尺寸 | 22 | 方向 | Keyed |
| 外壳样式 | Plug | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点尺寸 | 3 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Free Hanging |
| 引脚数 | 3 | 外壳材料（壳体） | Zinc alloy |
| 连接器样式 | Plug | 连接器用途 | Threaded |
| 壳体材料 | Thermoplastic | 包装数量 | 10 |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Male | 配接方向 | Keyed |
| 触点数 | 3 | 端接表面处理 | 带有 |
| 绝缘直径 | 5.59 [0.220] | 位数 | 3 |
| 外壳尺寸-插件 | Metal | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Thermoplastic | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | PL | 系列 | Series 3 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 22-3 | 制造商全称 | Series3 |
| 产品子类型 | Connector | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作范围 | 不密封 | ||
相关型号
66261-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Standard Circular Contacts PIN CONTACT 16,14-12 tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 14-12AWG, CRIMP MaleContactAssembly;16-12AWG MALE CONTACT ASSY. (L.P.)
66261-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;FINISH=SILVERW/LUBRICANTADDED TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于G 系列以及 CPC 和 M 系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8AWG silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 10-8AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE MULTIMATE Male Type XII Series 10-8 AWG Discrete Wire Crimp Power Pin Assembly TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
208497-2
te connectivity / amp
Conn CPC SKT 3 POS ST Panel Mount 3 Terminal 1 Port Standard Circular Connector CMC RECEPTACLE ASSY,SIZE 22 CPC Connectors CONN RCPT CMC HSING 22-3 REV CMC RECEPTACLE ASSY,SIZE 22
66259-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG GOLD CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8 AWG gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 10-8AWG CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 5÷8mm2; Type XII; gold plated; crimped MULTIMATE 10 - 8 AWG Gold (30) Crimp Contact Crimp Contact 35 A, 66259-2, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP PIN CONTACT XII TYPE Standard Circular Contacts PIN CONTACT 10 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG10 CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 5÷6mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 10 AWG 线规格 MALE CONTACT ASSY. (L.P.)

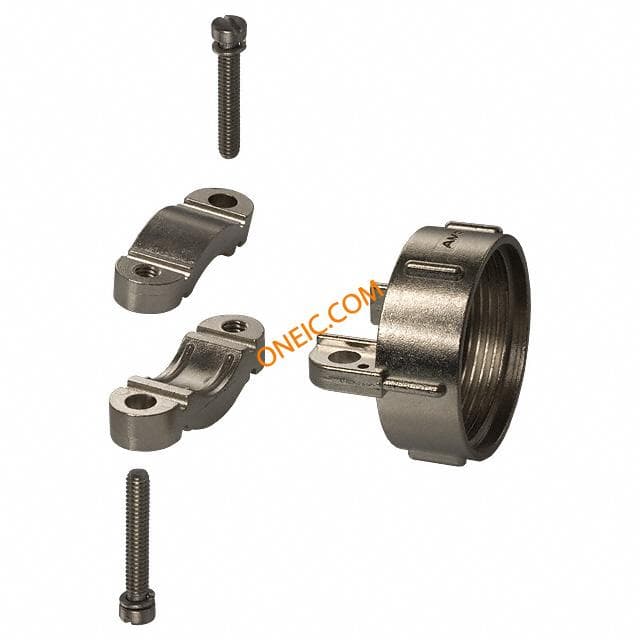

208945-7
te connectivity / amp
Connector Accessories Clamp Zinc Alloy Nickel Finish Black CPC Accessories CONN CABLE CLAMP SIZE 22 METAL Cable clamp shell,Size 22 Standard Circular Connector CABLE CLAMP SIZE 22 Connector Accessories Clamp Zinc Alloy Nickel Finish Black Product Highlights:Cable ClampShell Size = 22Body Style = StraightCable Diameter (Max.) = 8.26 - 19.05 mmZinc Alloy Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, CPC, SIZE 22 Clamp,Cable;CPCConnectors;22;0.325in.to0.750in.(Max.) Cable Clamp Standard,Housing size 22, Size 1-3/16-18, 208945-7, TE Connectivity TE Connectivity 黑色 电缆夹, 19.05mm 捆束直径 SZ 22 UNASSM KIT,CMC
66261-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16 TO 12 AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 1.25÷3mm2; Type XII; gold plated; crimped MULTIMATE Male Type XII Series 14-12 AWG Discrete Wire Crimp Power Pin Assembly Crimp Contact 35 A, 66261-2, TE Connectivity TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66262-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors LP CONTACT ASSY MALE Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALECONTACTASSEMBLY,16AWG,14-12AWG Earth pin CPC CPC, 66262-4, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CMC 系列 4 连接器, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66262-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Pin & Socket Connectors MALE CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16-12AWG, CRIMP Contact,Multimate;PowerContact;Copper;Grounding;Gold(30);14-12AWG TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP Standard Circular Connector PIN CONTACT 10 AWG tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALECONTACTASSEMBLY,TYPEXII,10AWG MALE CONTACT ASSY. (L.P.)
66261-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Pin contact male 14-12 AWG type XII Sn Standard Circular Connector PIN CONTACT 16,14-12 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 1.25÷1.4mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 15A 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 14 → 12 AWG，16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)

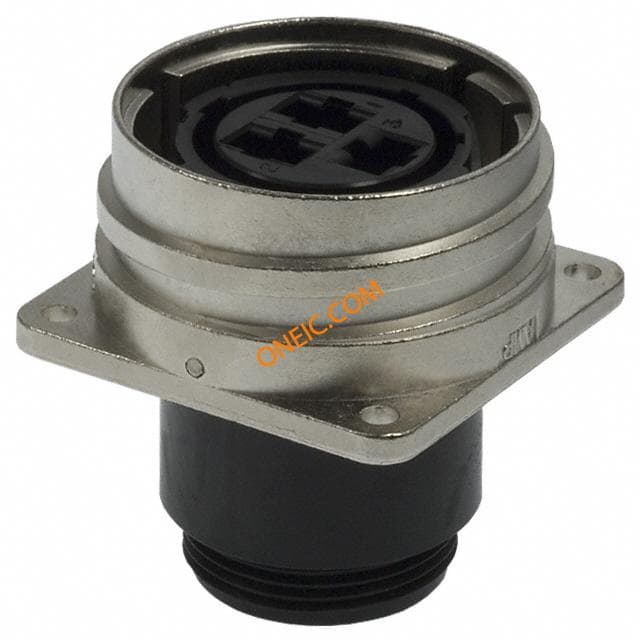

208497-1
