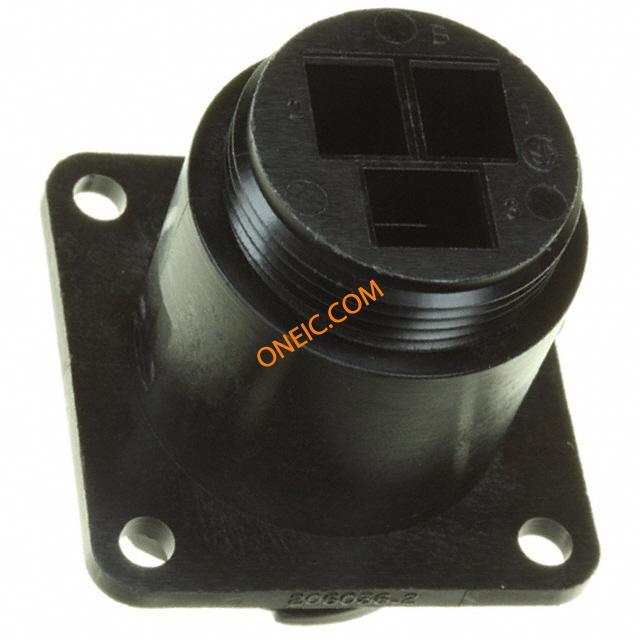

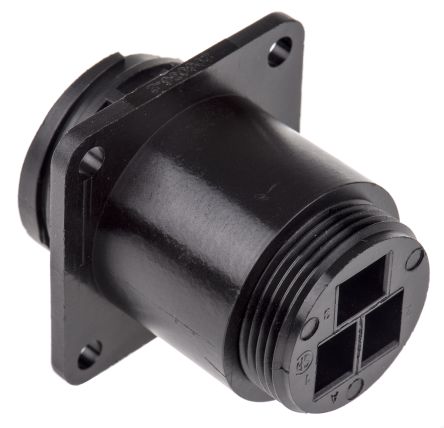

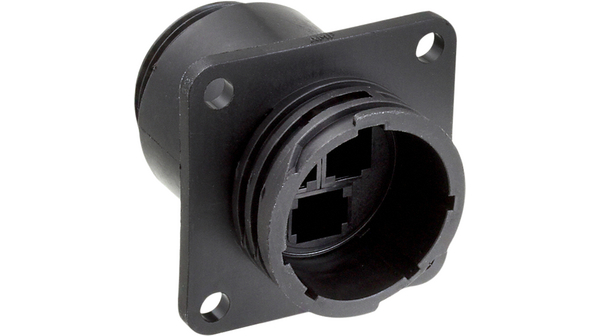

206036-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 3 POS ST Panel Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS STD SER 3 3 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector STD SQUARE RECP 17-3 Conn CPC PIN 3 POS ST Panel Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 3WAY ConnectorHousing;CPCReceptacle;3Pos.;Sz.17;Series3;PanelMnt;StdSex Receptacle CPC3 Poles=3, accepts male contacts / with flange, 206036-2, TE Connectivity TE Connectivity 3路 面板安装 直向 连接器 插座 , 公触点 CPC RECEPTACLE SIZE 17-3 |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 3 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 0 | 最大额定电流 | :25A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | No |
| 重量 | 0.02 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | A | 外壳样式 | Receptacle |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 3Signal |
| 触点尺寸 | 3 Power | 触头类型 | 3Power |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :17-3 | 本体材料 | :Glass Reinforced Nylon (Polyamide) |
| 材料表面处理 | :- | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 41.53 mm |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | PIN |
| 连接器颜色 | :Black | 配接方向 | Keyed |
| 触点数 | 3 | 面板开孔形状 | :29.4mm |
| 绝缘直径 | 5.59 [0.220] | 位数 | 3 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Nylon | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Standard | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 3 |
| 钥匙类型 | A | 预加载 | No |
| 排列方式 | 17-3 | 制造商全称 | Series3 |
| 产品子类型 | Connector | 射频系列/标准 | 206036 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 工作温度 | :105°C | ||
相关型号

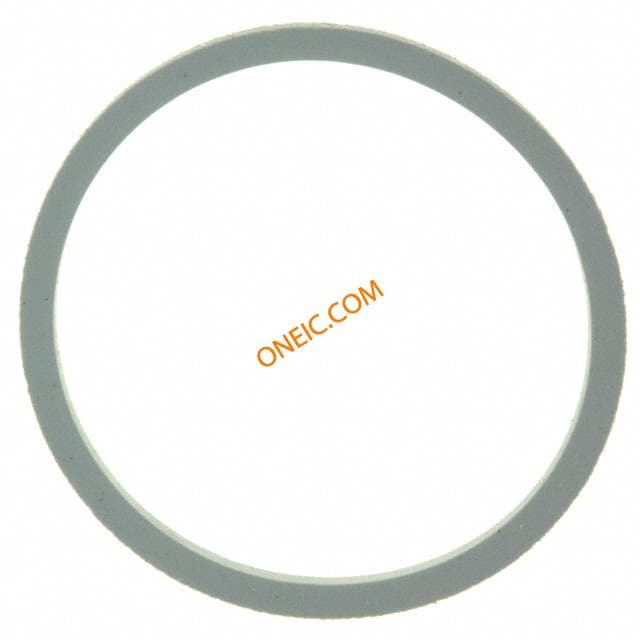

206403-2
te connectivity / amp
Connector Accessories Peripheral Seal Elastomer CPC Accessories CONN SEAL PERIPHERAL SIZE 17 Series 3 interfacial seal,Size 17 Standard Circular Connector PERIPHERAL SEAL 17 Connector Accessories Peripheral Seal Elastomer Product Highlights:Peripheral SealShell Size = 17Search Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, PERIPHERAL SEAL, SIZE 17 CPCPERIPHERALSEAL(FORRECEPTACLESONLY),SHELLSZ.17 Peripheral Seal,Housing size 17, 206403-2, TE Connectivity TE Connectivity 电线密封 PERIPHERAL SEAL
66261-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Standard Circular Contacts PIN CONTACT 16,14-12 tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 14-12AWG, CRIMP MaleContactAssembly;16-12AWG MALE CONTACT ASSY. (L.P.)
182661-1
te connectivity / amp
Connector Accessories Clamp Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 17 CPC cable clamp,Shell size 17B Standard Circular Connector 17 SIZE LARGE CLAMP Connector Accessories Clamp Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 17Body Style = StraightCable Diameter (Max.) = 17.86 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, BACKSHELL, CPC, SIZE17 9&14WSTDBACKSHELL Cabel hood and fastener; Series: CPC; Case: size 17; UL94V-0 Cap size 17 17.9 mm, 182661-1, TE Connectivity TE Connectivity 黑色 电缆夹 17 SIZE CPC LARGE CLAMP
66261-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;FINISH=SILVERW/LUBRICANTADDED TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于G 系列以及 CPC 和 M 系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8AWG silver Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 10-8AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE MULTIMATE Male Type XII Series 10-8 AWG Discrete Wire Crimp Power Pin Assembly TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
206207-1
te connectivity / amp
Conn CPC M 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN RECEPT CPC 3POS STD SER 3 3 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector RECP STD F.H. 17-3 Conn CPC M 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 3WAY ConnectorHousing;CPCReceptacle;3Pos.;Sz.17;Series3;FreeHang;StdSex Receptacle CPC3 Poles=3, accepts male contacts / Free hanging/cable mount, 206207-1, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插座 , 公触点 17-3 RECEPT. FREE-HANGING
66259-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG GOLD CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 10 to 8AWG Standard Circular Connector PIN CONTACT 10-8 AWG gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 5.00-8.00² [10-8] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, GOLD, 10-8AWG CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 5÷8mm2; Type XII; gold plated; crimped MULTIMATE 10 - 8 AWG Gold (30) Crimp Contact Crimp Contact 35 A, 66259-2, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 10 → 8 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP PIN CONTACT XII TYPE Standard Circular Contacts PIN CONTACT 10 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG10 CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 5÷6mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 10 AWG 线规格 MALE CONTACT ASSY. (L.P.)
206037-2
te connectivity / amp
Conn CPC SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CPC Connectors CONN PLUG CPC 3POS STD SER 3 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector PLUG STANDARD 17-3 Conn CPC SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 3PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE ConnectorHousing;CPCPlugAssy;3Pos.;Sz.17;Series3;FreeHang;StdSex Connector: circular; Series: CPC Series 3; plug; female; PIN:3 Plug CPC3 Poles=3, accepts female contacts / Free hanging/cable mount, 206037-2, TE Connectivity TE Connectivity 3路 电缆安装 直向 连接器 插座 CPC PLUG ASSEMBLY SIZE 17-3
66261-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series 35A Male Circular Connector Contact, Crimp,Wire size 16 to 12AWG Standard Circular Connector PIN CONTACT 16,14-12 gold Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16 TO 12 AWG, CRIMP CPCTYPEXIICONTACTFORSERIES3;MALE Contact; male; 1.25÷3mm2; Type XII; gold plated; crimped MULTIMATE Male Type XII Series 14-12 AWG Discrete Wire Crimp Power Pin Assembly Crimp Contact 35 A, 66261-2, TE Connectivity TE Connectivity Type XII 系列 35A 公 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66262-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors LP CONTACT ASSY MALE Multimate CONN PIN 12-16AWG SILVER CRIMP Type XII Series Size 16 Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinSilver Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALECONTACTASSEMBLY,16AWG,14-12AWG Earth pin CPC CPC, 66262-4, TE Connectivity TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 使用于CMC 系列 4 连接器, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66262-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG GOLD CRIMP Type XII Series Male Circular Connector Contact, Crimp,Wire size 14 to 12AWG Pin & Socket Connectors MALE CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 16-12AWG, CRIMP Contact,Multimate;PowerContact;Copper;Grounding;Gold(30);14-12AWG TE Connectivity Type XII 系列 公 压接端接 圆形 连接器 触芯, 14 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)
66259-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 10AWG TIN CRIMP Standard Circular Connector PIN CONTACT 10 AWG tin Type XII Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead Contact Mating Area PlatingWire Range = 5.00-6.00² [10] mm [AWG]Insulation Diameter = 4.83 - 5.59 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALECONTACTASSEMBLY,TYPEXII,10AWG MALE CONTACT ASSY. (L.P.)
66261-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 12-16AWG TIN CRIMP Pin contact male 14-12 AWG type XII Sn Standard Circular Connector PIN CONTACT 16,14-12 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP CONTACT, PIN, 12-14 AWG CPCTYPEXIICONTACTFORSERIES3;MALE;(CONTACTFINISH:TIN-LEAD) Contact; male; 1.25÷1.4mm2; Type XII; tinned; crimped TE Connectivity Type XII 系列 15A 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 14 → 12 AWG，16 → 12 AWG 线规格 MALE CONTACT ASSY. (L.P.)

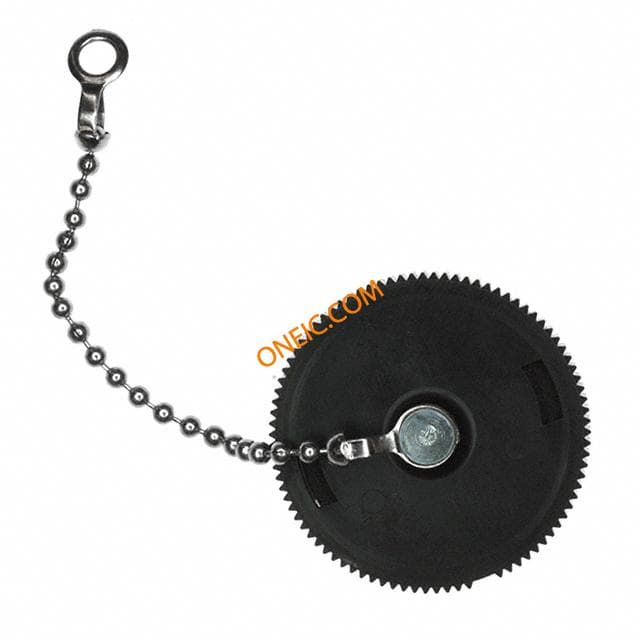

208652-1
