208652-1
| 制造商 | TE Connectivity Ltd. |

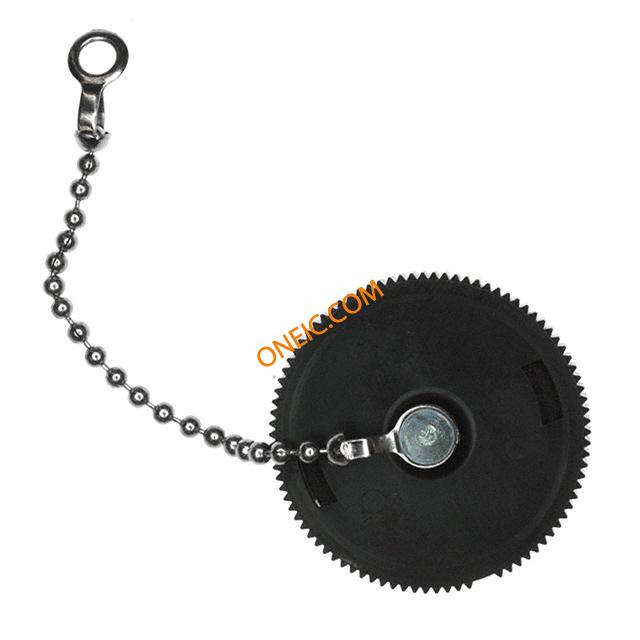

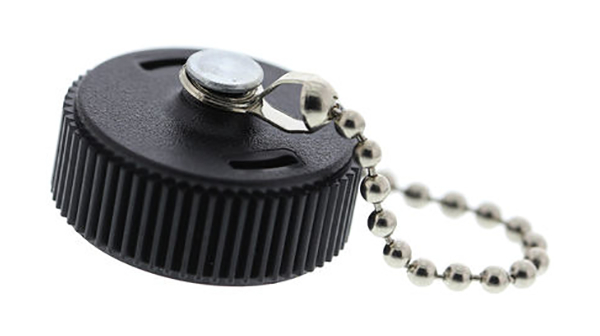

| 描述 | Connector Accessories Sealing Cap Black Thermoplastic 17Shell Size CPC Accessories CONN CAP SEAL SIZE17 METAL CHAIN Dust cap with metal chain,Size 17 Standard Circular Connector SLG CAP METAL 17 Connector Accessories Sealing Cap Black Thermoplastic 17Shell Size Product Highlights:Sealing CapShell Size = 17Metal Bead Chain Cap To Flange AttachmentSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, SEALING CAP, SIZE 17 CPCSEALINGCAP(FORRECEPT.ONLY);W/BEADEDCHAIN;SHELLSZ.17,FORSERIES1,2&3 CPC Accessory Shell Size 17 Bead Chain Sealing Cap Protective cap CPC, size 17, 208652-1, TE Connectivity TE Connectivity 防尘盖 SEALING CAP ASSY,SZ 17,CPC |
| 分类 |
商业参数
| 商标名 | CPC Accessories | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-1 | ||
机械参数
| 颜色 | Black | 深度 | 32.46 mm |
| 重量 | 0.005 | 材料（通用） | Nickel Plated Steel |
| 外壳尺寸 | 17 | 电缆颜色 | Black |
| 连接器类型 | :Dust Cap & Cover | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 主要材料 | SealingCap |
| 固定方法 | Metal Bead Chain | 包层材料 | Thermoplastic |
| 连接器颜色 | :Black | 外壳尺寸-插件 | 17 |
产品信息
| 类型 | Cap | 系列 | Series I, Series III, Series II |
| 产品特性 | Metal Chain | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Sealing Cap |
| 附件类型 | Cap (Cover), Sealing | 射频系列/标准 | 208652 |
| 适用产品/相关产品 | CPC Receptacle Series 1, 2 and 3 | ||
环境参数
| 工作温度 | :105°C | ||
