点击放大查看

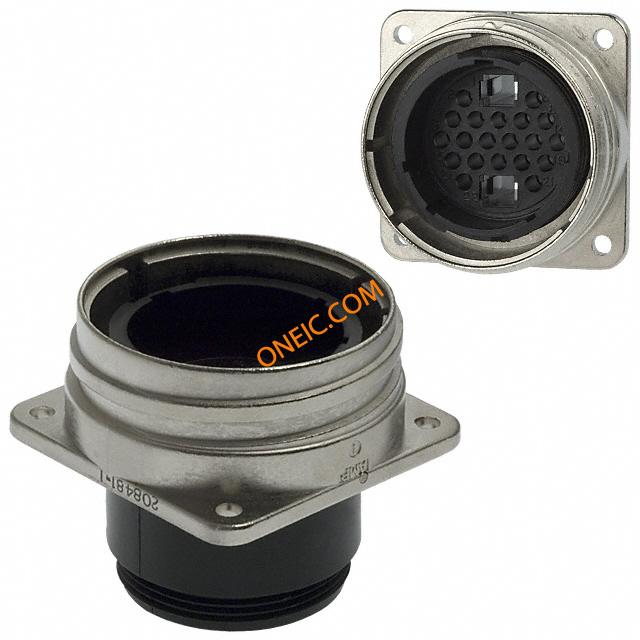

208481-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port CPC Connectors CONN RECEPT CMC 22POS STD SER 4 Standard Circular Connector RECPT STD 28-22M Conn Metal Shell CPC PIN 22 POS ST Panel Mount 22 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 22ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;Recept.Assy;22Pos.;Sz.28;Series4;PanelMount CMC RECPT ASSEMBLY SIZE 28 |
| 分类 |
商业参数
| 商标名 | CPC Series 4 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 20 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 深度 | 49.53 mm |
| 高度 | 49.53 mm | 密封型 | No |
| 外形尺寸(长x宽) | 28 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 出线方向 | No |
| 外壳尺寸 | 28 | 方向 | Keyed |
| 外壳样式 | Receptacle | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | 2Power/20Signal | 触点尺寸 | 16 (20), 2 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Panel | 引脚数 | 2 |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Receptacle |
| 壳体材料 | Thermoplastic | 总长度 | 46.36 mm |
| 包装数量 | 10 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Pin | 配接方向 | Keyed |
| 触点数 | 22 | 端接表面处理 | 带有 |
| 绝缘直径 | 5.59 [0.220] | 位数 | 22 |
| 外壳尺寸-插件 | Metal | 安装孔直径 | 0.145" |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 典型触点布局 | 2Power,20Signal |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 28-22M | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | RCP | 系列 | Series 4 |
| 预加载 | No | 排列方式 | 28-22M |
| 制造商全称 | Series4 | 产品子类型 | Connector |
| 电路数 | 2 (Power)/20 (MultiMate) | 射频系列/标准 | 208481 |
| 其他规格 | Without | 输出配置 | Panel Mount, Flange |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作范围 | 不密封 | 工作温度 | -55C to 125C |
