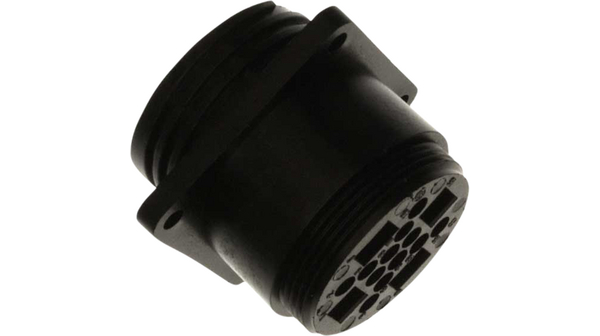

点击放大查看
207486-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 4 16 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECPT SQUARE 23-16M Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SIZE 23, CPC, 12S-4P ConnectorHousing;CPCReceptacle;16Pos;Sz.23;Series4;PanelMnt;StdSex Connector: circular; Series: CPC Series 4; socket; male; UL94V-0 Receptacle CPC4 Poles=16, accepts male contacts / with flange, 207486-1, TE Connectivity TE Connectivity 16路 面板安装 直向 连接器 插座 SIZE 23-16 RECEPTACLE,CPC |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 4 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 12 | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 深度 | 44.45 mm | 高度 | 44.45 mm |
| 密封型 | No | 重量 | 0.03 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Receptacle | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | 4Power/12Signal | 触点尺寸 | 16 (12), 4 Power |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | :- | 紧固类型 | Threaded |
| 安装样式 | Panel | 封装形式 | size 23 |
| 连接器样式 | Receptacle | 插入角度 | :12-4 |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Glass Reinforced Thermoplastic |
| 触头材料 | :- | 壳体材料 | Thermoplastic |
| 总长度 | 41.53 mm | 包装数量 | 5 |
| 面板安装类型 | Square Flange | 连接器 - 电缆 | socket |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 16 |
| 接触件端接 | :Solder | 位数 | 16 |
| 外壳尺寸-插件 | All Plastic | 导体绝缘 | 5.59 [0.220] |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :- | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 23-16M | ||
产品信息
| SPG | 5 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | RCP |
| 系列 | Series 4 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 适配器系列 | CPC Series 4 | 单元数量 | 1 |
| 电路数 | 4 (Power)/12 (MultiMate) | 射频系列/标准 | 207486 |
| 其他规格 | Without | 适用产品/相关产品 | Pin Contacts |
