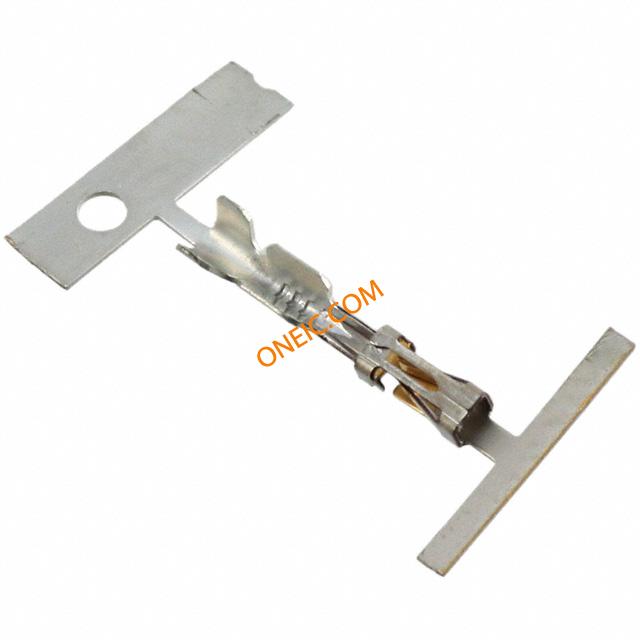

6-87756-2

点击放大查看

6-87756-2

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-22AWG CRIMP GOLD AMP Modu IV contact,rcp,0.12-0.40mm2 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ContactReceptacle;TerminatetoWire;Diameter=1.55mm;Range0.12-0.40mm TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP PLTD 15 DPLX LF
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A100862CT标准包装数量Tape & Reel

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476

电气参数

输入端100 – 200供电电压250
接触电阻12mΩ输入电阻5000
钳位电压750连接器阻抗压接
最大额定电流3 A最小供电电压250VAC

机械参数

深度2.03 mm间距Not Required mm
包装方式Tape & Reel (TR)电缆类型分离式导线
导线线规22-26 AWG端接方式Crimp
触头类型Signal外壳颜色Not Required
安装类型Straight插针或插孔Socket
电缆直径0.4mm²连接器类型Connector Headers and PCB Receptacles
接触镀层Gold Over Nickel安装样式Cable
插入件材料铜-锡-磷青铜操作力Standard
触头材料Copper-Tin-Phosphor Bronze壳体材料Not Required
总长度11.3 mm包装数量12500
端接排数压接绝缘高度Yes
端接样式插座触点数Not Required
接触件端接Crimp绝缘直径1.55 mm [ .061 in ]
镀层厚度（通用）锡触头长度-柱信号（数据）/电源
端子螺钉表面处理哑光接触件表面处理 - 配合金
接触镀层厚度15µin (0.38µm)线规或范围 - AWG22AWG

产品信息

备注(*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines.类型Contact
连接器性别SKT系列AMPMODU
产品子类型接触件

环境参数

工作温度+105°C

相关型号

1-87456-6

1-87456-6

te connectivity / amp

Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL Housing 20 way receptacle 2.54mm AmpModu Headers & Wire Housings 20P HOUSING Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;ModIV;Dual;20;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 20 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 壳体 20 MODIV HSG DR MRKD .100CL

¥5.7800
详情
87922-5

87922-5

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD

¥24.8200
详情
1-102387-5

1-102387-5

te connectivity / amp

Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 22POS DUAL .100

详情
87733-6

87733-6

te connectivity / amp

Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG 2X15C F/H POL .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 30POS .100 POL W/STR 87733-6 Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG W/STR RLF DR MRKD

¥24.4800
详情
4-87977-8

4-87977-8

te connectivity / amp

Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings 50 MODIV HSG COMP DR .100 POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 MODIV HSG COMP DR .100 POL

¥8.7040
详情
102241-1

102241-1

te connectivity / amp

Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 3POS .100 POLAR 2.54mm,housing,3W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 3 SNGL detent latching Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 3WAY Housing,Connector;ModIV;Single;3;250VAC;3A;750VYes Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 3 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体 03 MODIV HSG COMP SR .100 POL

¥1.5776
详情
2-87977-9

2-87977-9

te connectivity / amp

Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Headers & Wire Housings 08 MODIV HSG COMP DR Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MODIV HSG COMP DR .100 POL

¥5.5080
详情
1-87733-7

1-87733-7

te connectivity / amp

Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 60POS .100 POL W/STR .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG W/STR RLF DR MRKD

¥24.5480
详情
2-87499-3

2-87499-3

te connectivity / amp

Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 13POS .100 SINGLE Headers & Wire Housings HSG 1X13C F/H Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 13POS, 2.54MM 13 MODIV HSG SR MRKD .100CL

¥3.9440
详情
1-87631-8

1-87631-8

te connectivity / amp

Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 22 MODIV HSG DR MRKD .100 POL Headers & Wire Housings 22 MODIV HSG DR MRKD .100 POL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 22Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥9.2684
详情
1-87631-5

1-87631-5

te connectivity / amp

Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 20 POS Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM AMPMODU 20 Position Dual Row 2.54 mm Pitch Crimp Unloaded MOD IV Socket Housing 20 MODIV HSG COMP DR .100 POL

¥6.4940
详情
2-87456-7

2-87456-7

te connectivity / amp

Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 32 MODIV HSG COMP DR .100CL Headers & Wire Housings 32 MODIV HSG COMP DR .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥7.4800
详情
7-87499-0

7-87499-0

te connectivity / amp

Conn Housing RCP 36 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts 36 MODIV HSG COMP SR .100CL Headers & Wire Housings 36 MODIV HSG COMP SR .100CL Conn Housing RCP 36 POS 2.54mm Crimp ST Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥7.6840
详情
3-87977-3

3-87977-3

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM 16 MODIV HSG COMP DR .100 POL

¥6.4600
详情
4-87977-0

4-87977-0

te connectivity / amp

Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT CRIMP 30POS Headers & Wire Housings 30 MODIV HSG COMP DR .100 POL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG COMP DR .100 POL

¥6.3920
详情

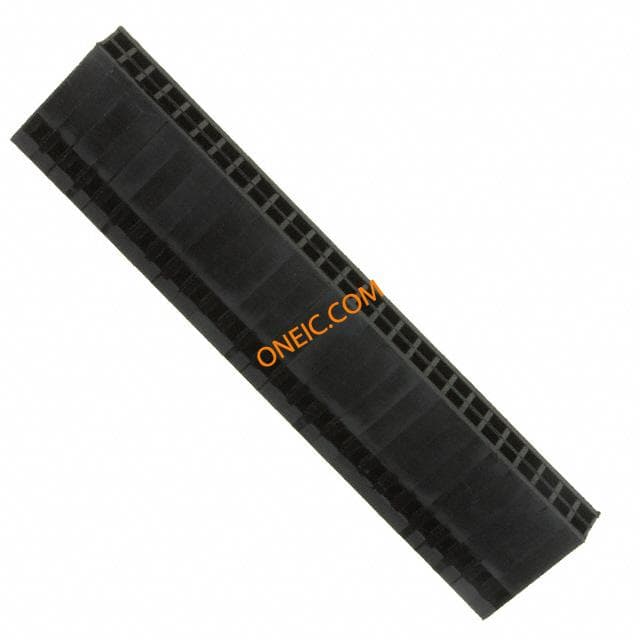

4-87456-5
