首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）1-87631-5

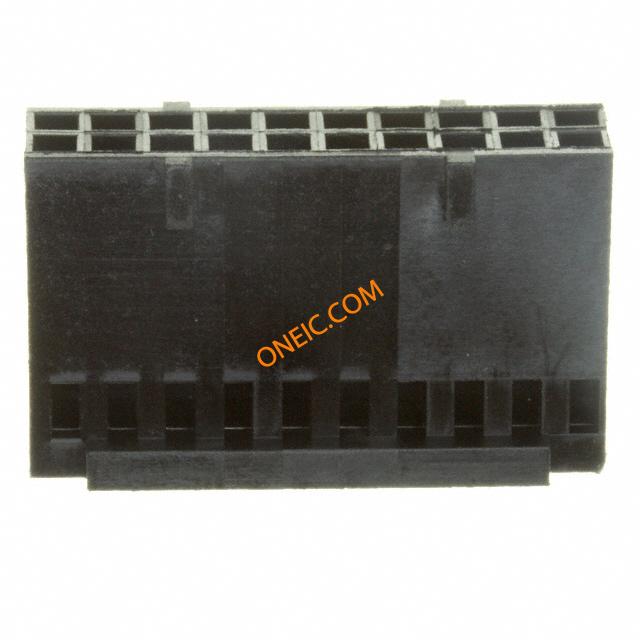

点击放大查看

1-87631-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 20 POS Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM AMPMODU 20 Position Dual Row 2.54 mm Pitch Crimp Unloaded MOD IV Socket Housing 20 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 V
开关功能	Detent Latching	最大额定电流	3 A
最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	重量	0.00181
包装方式	Bulk	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	排数	2
触头材料	Phosphor Bronze	壳体材料	Nylon
总长度	25.4 mm	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	20
接触件端接	Crimp	位数	20

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	应用细节	Board to Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580369.pdf

在线文档

1-87631-5?RQPN=1-87631-5
