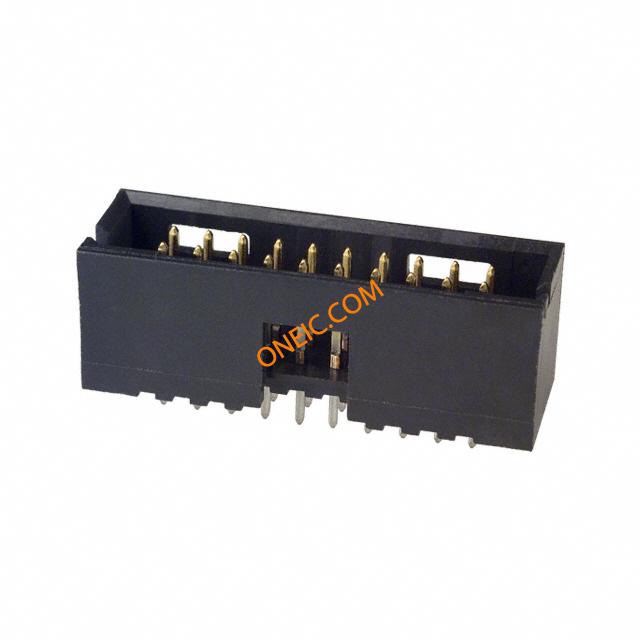

5-102619-8

点击放大查看

5-102619-8

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 15AU Headers & Wire Housings ACTION PIN VERT 20P dual .150 end Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRST SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量144

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
无铅定义Wave solder capable to 240°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压750 V开关功能Detent Windows
连接器阻抗制动器窗口最大额定电流3 A
保护额定电压（VPR）750 Vrms

机械参数

颜色Black深度10.16 mm
间距2.54 mm高度11.18 mm
底座类型不带包装方式Tray
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角排间距0.100" (2.54mm)
稳定剂Without端接方式Solder
触头类型Male Pin第一连接器No
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
连接器类型Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式Through Hole
排数2封装形式4-Sided
外壳材料（壳体）4- 面插入件材料磷青铜
锁定特性Detent Windows外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度3.81 [0.150]安装特性Without
包装数量144面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数20端接表面处理带罩
位数20柱体长度（配合）8.08 mm
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触长度 - 配合8.08 [0.318]表面贴装焊盘尺寸No
端子柱长度3.18 [0.125]接触镀层厚度15µin (0.38µm)
静电放电屏蔽不带端接镀层厚度100 – 200

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
制造商全称AMP产品子类型Header
选择性装载No加载位置数All

环境参数

密封等级不带温度No
工作温度-55 – +105封装热阻1.397 mm [ .055 in ]
