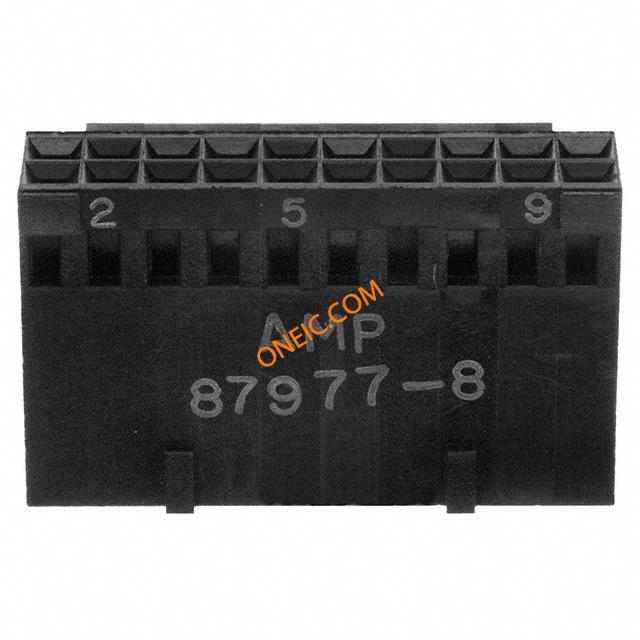

87977-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings 20 HSG DR. MRKD .1POL Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 MODIV HSG DR MRKD .100 POL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	200

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	最小供电电压	250VAC
连接器类型 - 电压输入	Crimp	保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.096 mm [ .24 in ]
长度	25.4 mm [ 1 in ]	锁定类型	带有
包装方式	Bulk	壳体颜色	黑色
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	壳体材料	Nylon
总长度	25.4 mm	包装数量	200
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	20	接触件端接	Crimp
位数	20	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	其他规格	是
输出配置	Free Hanging (In-Line)

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

相关型号

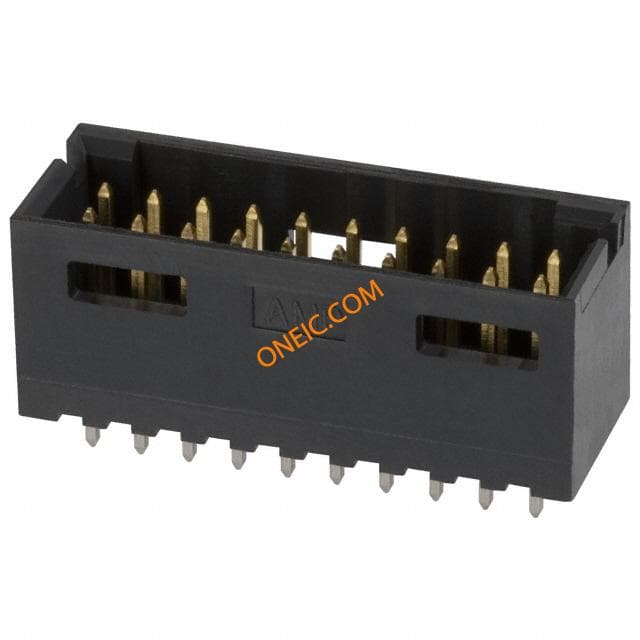

5-103168-8

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 30AU Header Vertical 20 way AmpModu Headers & Wire Housings SHROUDED VER DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM MODUTHRUDRHDRSHRD,20MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 通孔 20 MODII HDR DRST SHRD .100CL

¥11.9680

详情

102619-8

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 15AU Headers & Wire Housings ACTION PIN VERT 20P dual .150 end Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRST SHRD .100CL

¥16.7192

详情

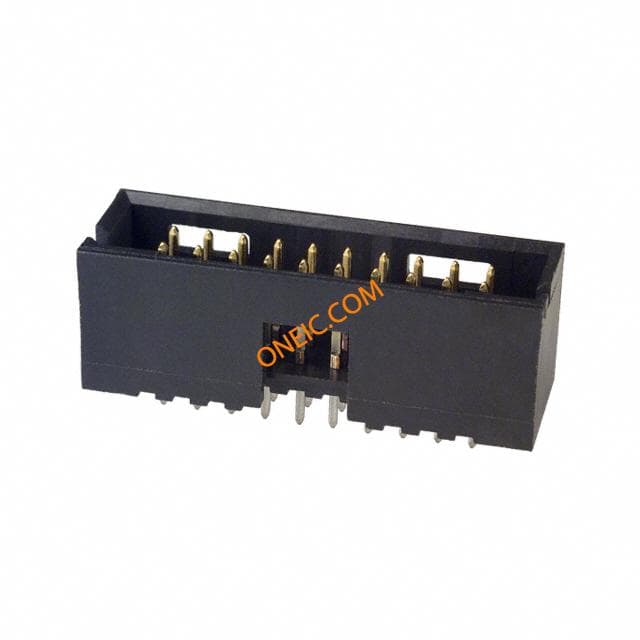

5-102619-8

te connectivity / amp

¥9.9280

详情

104319-2

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 20POS DUAL R/A GOLD Headers & Wire Housings 20 MODII HDR DRRA SHRD .100CL 20 MODII HDR DRRA SHRD .100CL 20 MODII HDR DRRA SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥24.2277

详情

87579-7

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RA .100 20POS TIN Headers & Wire Housings SHROUDED RA DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHeader Type = Shrouded20 PositionsMating Post Length = 8.08 mm2.54 mm CenterlineSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD .100CL

¥11.2200

详情

87577-7

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 20POS DL R/A TIN Headers & Wire Housings 20 MODII HDR DRRA SHRD 0.100CL 20 MODII HDR DRRA SHRD .100CL 20 MODII HDR DRRA SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥6.4600

详情

102618-8

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 20POS 15AU Headers & Wire Housings SHROUDED VER DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRST SHRD .100CL

¥11.6960

详情

102620-6

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 20POS DUAL R/A GOLD Headers & Wire Housings 20 MODII HDR DRRA 3/4SHRD .100 20 MODII HDR DRRA 3/4SHRD .100 20 MODII HDR DRRA 3/4SHRD .100 Search Keywords:board to board, AMPMODU, pcb connectors,

¥7.7316

详情

102617-8

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole AMPMODU Shrouded Headers CONN HEADER R/A .100 20POS 15AU Headers & Wire Housings SHROUDED RA DUAL 20 detent windows Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD .100CL

¥8.8400

详情

5-103167-7

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 20POS 30AU Headers & Wire Housings ACTION PIN R.A. 20P dual .150 end Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 20Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Header,ThroughHole;Shrouded;RightAngle;PhosphorBronze;Thermoplastic;20 20 MODII HDR DRRA SHRD LF

¥21.5560

详情

5-102570-8

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR 2X10P R/A T/H .100 inch AMPMODU Headers CONN HEADER R/A .100 20POS 15AU Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded20 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD LF

¥11.5600

详情

5-102617-8

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 20POS 15AU Headers & Wire Housings HDR 2X10P R/A T/H Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded20 PositionsMating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 20 MODII HDR DRRA SHRD LF

¥11.9000

详情

1-104353-0

te connectivity / amp

Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 20POS R/A DUAL Headers & Wire Housings 20 MODII HDR DRRA B/A W/HLDWN 20 MODII HDR DRRA B/A W/HLDWN 20 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,

¥7.2760

详情

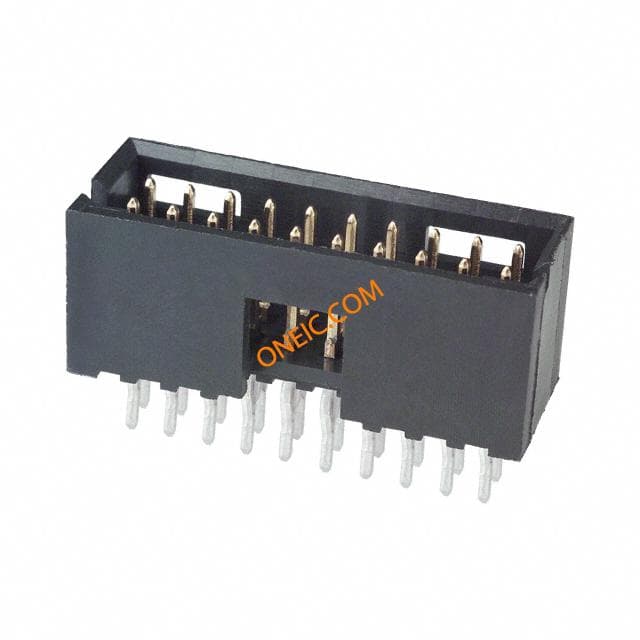

5-102699-9
