4-87977-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings 50 MODIV HSG COMP DR .100 POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 MODIV HSG COMP DR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 VAC | 开关功能 | Detent Latching |
| 供电电压 | 250 VAC | 接触电阻 | 12 mΩ |
| 输入电阻 | 5000 | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 A | 最小供电电压 | 250VAC |
| 保护额定电压（VPR） | 750 V | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 6.1 mm [ .24 in ] |
| 长度 | 63.5 mm [ 2.5 in ] | 锁定类型 | 带有 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 20-30 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 插入件材料 | 铍铜 | 壳体材料 | Nylon |
| 总长度 | 63.5 mm | 包装数量 | 1 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 50 | 接触件端接 | Crimp |
| 位数 | 50 | 兼容外壳尺寸（如TM-700等） | 公端 |
| 安装孔直径 | 带有 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 产品子类型 | Receptacles / Sockets - Housings | 其他规格 | 否 |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
6-87756-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-22AWG CRIMP GOLD AMP Modu IV contact,rcp,0.12-0.40mm2 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ContactReceptacle;TerminatetoWire;Diameter=1.55mm;Range0.12-0.40mm TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP PLTD 15 DPLX LF
2-87195-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG CRIMP GOLD Headers & Wire Housings INTERMEDIATE 24-20 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP MOD IV RECP LP, 30 Au, TIN, RoHS
2-87195-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SKT 24-20 PHCU/AU .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 30AU CRIMP 2-87195-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD IV RECP PLTD 30 DPLX
2-87195-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SKT 24-20 CU/AU .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP Contact female crimp 24-20AWG AmpModu Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP Contactfemalecrimp24-20AWGAmpModu TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP PLTE 15 DPLX

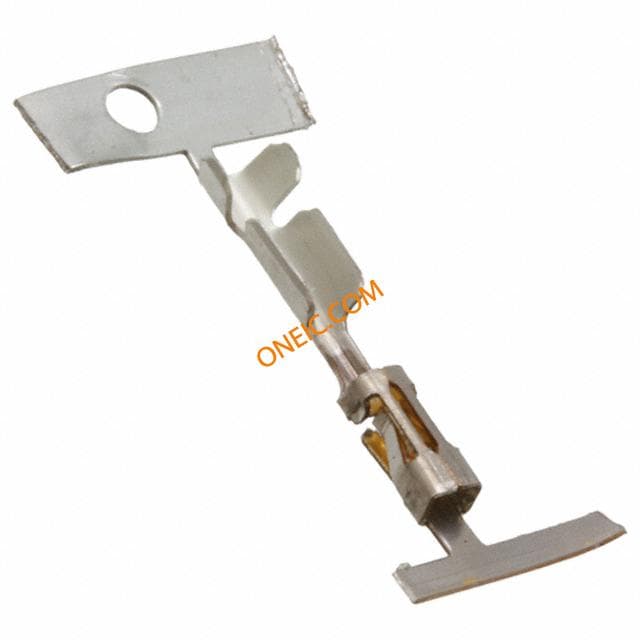

2-87195-5
