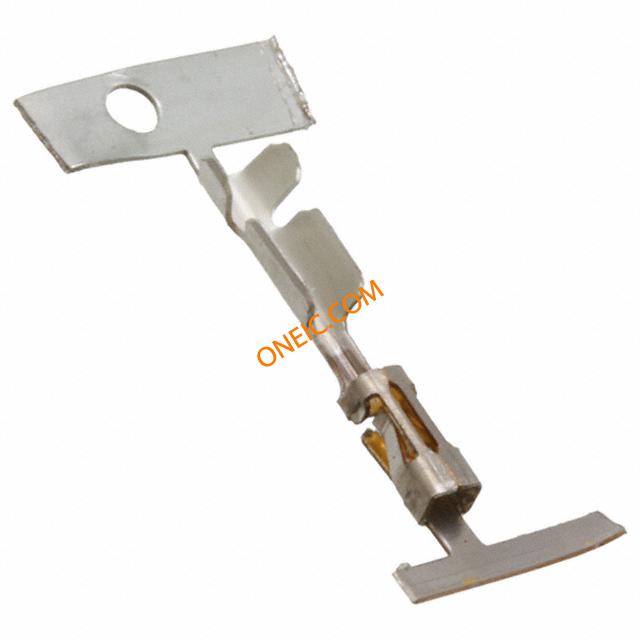

2-87195-4

点击放大查看

2-87195-4

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SKT 24-20 CU/AU .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP Contact female crimp 24-20AWG AmpModu Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP Contactfemalecrimp24-20AWGAmpModu TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD IV RECP PLTE 15 DPLX
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A33431CT
产品类别Headers & Wire Housings标准包装数量Tape & Reel
工厂包装数量12500

合规参数

RoHSRoHS Compliant海关税号85369010

电气参数

额定电压250 VAC接触电阻12mΩ
最大额定电流3 A最小供电电压250VAC

机械参数

深度2.41 mm间距Not Required mm
高度2.03 mm重量0
包装方式Reel导线线规24-20
端接方式Crimp外壳颜色Not Required
安装类型Straight插针或插孔Socket
接触镀层Gold安装样式Wire
触头材料Copper, Tin, Phosphor Bronze壳体材料Not Required
总长度12.09 mm端接样式Crimp
第一触头极性Socket (Female)触点数Not Required
接触件端接Crimp接触镀层厚度15µin (0.38µm)
线规或范围 - AWG:24AWG

产品信息

类型Contact连接器性别Female
系列AMPMODU MOD IV产品子类型Contacts
适用产品/相关产品:Mod IV.v Series Connectors

环境参数

工作温度- 65 C to + 105 C可用温度范围-65to+105°C
结工作温度105°C
