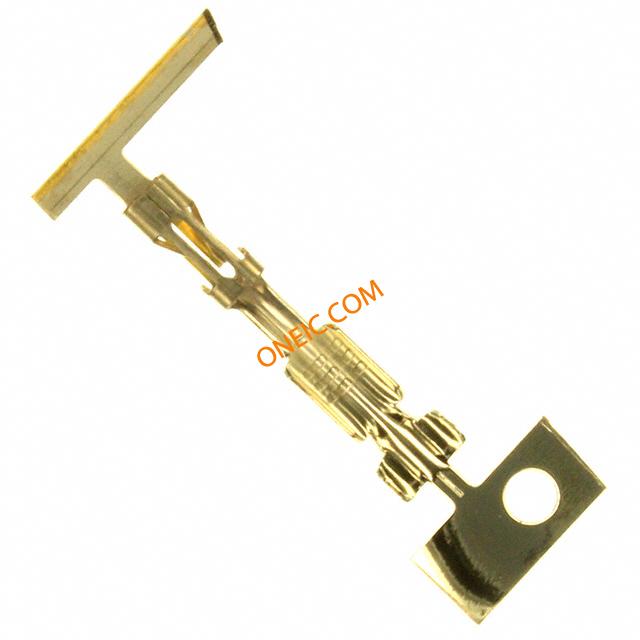

点击放大查看
2-87195-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Headers & Wire Housings SKT 24-20 PHCU/AU .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 30AU CRIMP 2-87195-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD IV RECP PLTD 30 DPLX |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A33430TR |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 12500 | ||
合规参数
| RoHS | RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 接触电阻 | 12 mΩ | 输入电阻 | 5000 |
| 钳位电压 | 750 | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Reel | 电缆类型 | 分离式导线 |
| 导线线规 | 24-20 | 插针或插孔 | Socket |
| 连接器类型 | 电线和电缆 | 接触镀层 | Gold |
| 安装样式 | Wire | 压力（PSI） | 中等 |
| 插入件材料 | 铜-锡-磷青铜 | 触头材料 | Copper, Tin, Phosphor Bronze |
| 包装数量 | 12500 | 绝缘高度 | 是 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 1 | 接触件端接 | Crimp |
| 绝缘直径 | 1.75 mm [ .069 in ] | 镀层厚度（通用） | 锡, 锡铅 |
| 触头长度-柱 | 信号（数据）/电源 | 接触件表面处理 - 配合 | 金 |
| 接触镀层厚度 | 30µin (0.76µm) | 触点镀层厚度 - 柱（配合端） | 100 – 200 |
产品信息
| 备注 | (*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines. | 系列 | AMPMODU MOD IV |
| 产品子类型 | Contacts | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
