点击放大查看

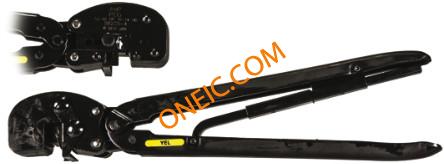

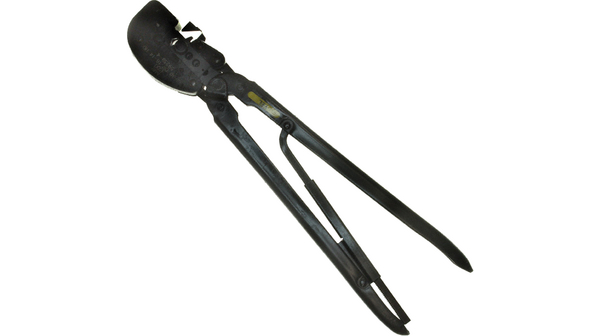

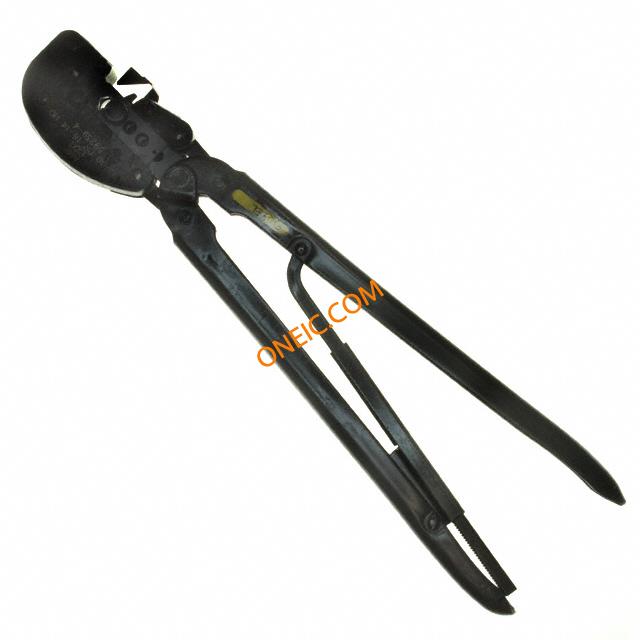

59239-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Hand Tool Used In The Aircraft And Military Industries Crimpers HHHT CRIMP TOOL 12-10 AWG HAND CRIMPER PIDG 10-12 Hand crimp tool, PIDG,PLASTI-GRIP,yellow Connector Accessories Hand Crimp Tool HAND CRIMP TOOL, RATCHET, PIDG TERMINALS & SPLICES Crimper;HeavyHeadRatchet;PIDG,PLASTI-GRIP;12-10AWG;306106-2,306107-2Die Crimping tool, 59239-4, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 , 适用于16 → 10 AWG 线规格 HHHT PIDG 12-10 |
| 分类 |
商业参数
| 产品 | Crimpers | 交货时间 | 56 Days |
| 子类别 | Assembly Tools | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 颜色 | Yellow | 重量 | 1.016 |
| 包装方式 | Bulk | 连接器类型 | PIDG & PLASTI-GRIP Terminal |
| 适用端子尺寸 | 12-10 AWG | 筒体内径 | :16AWG to 10AWG |
| 线规或范围 - AWG | 10 AWG | 线规或范围 - mm² | 16AWG |
产品信息
| 类型 | Hand Tool | 产品特性 | Side Entry, Ratchet |
| 工具类型 | Hand Crimper | 适用产品/相关产品 | PIDG terminals and splices |
