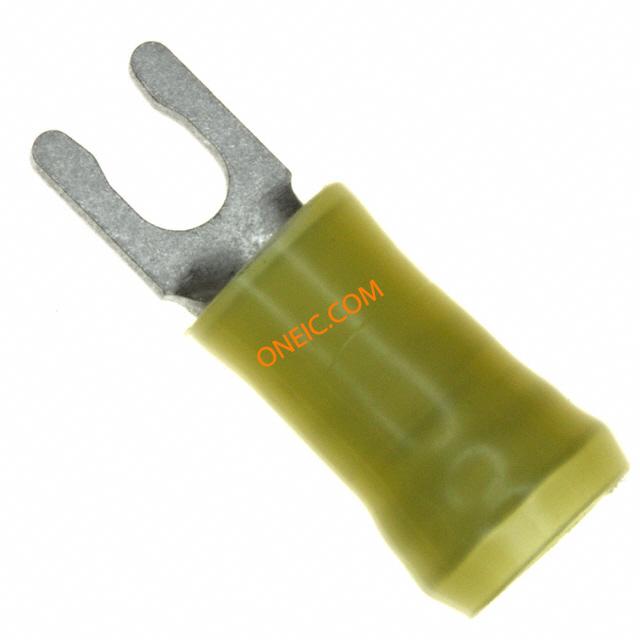

8-52941-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Spring Spade Terminal 10-12AWG 24.36mm 6.35mm Tin Loose Piece Terminals SPR SPADE 12-10 #6 Ring and Spade Tongue Terminals CONN SPADE SPRING 10-12 AWG #6 Spring Spade Terminal 10-12AWG 24.36mm 6.35mm Tin Loose Piece Product Highlights:Terminal Shape = Spring Spade, ShortReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, SPADE/FORK, #6, CRIMP, YELLOW SEE512-450152941 TERMINAL,PIDG SPR SPD 12-10 6 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Yellow | 深度 | 6.35 mm |
| 形状 | SPADE-028 | 表面处理 | Tin |
| 重量 | 0.1 | 材料（通用） | Phosphor Bronze |
| 包装方式 | Bulk | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 6 | 导线线规 | 10-12 AWG |
| 本体表面处理 | PIDG | 端接方式 | Crimp |
| 基体材料 | Phosphor Bronze | 触点形状 | Spring Spade, Short |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Spring, Snap | 行程角度 | Straight |
| 连接器类型 | :Fork / Spade Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.25" | 触头材料 | Phosphor Bronze |
| 柄部直径 | 0.140in. | 绝缘颜色 | :Yellow |
| 总长度 | 0.959" (24.36mm) | 包装数量 | Loose Piece |
| 主要材料 | Fork | 绝缘高度 | Insulation Support |
| 材料厚度 | 0.039in. | 绝缘直径 | 3.81-6.35 [.150-.250] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.250" (6.35mm) |
| 端接长度 | 0.601" (15.27mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | 0.99 [0.039] | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 环中心到端接长度 | 0.174" (4.42mm) | ||
产品信息
| 类型 | Spring Spade Terminal | 连接器性别 | Female |
| 系列 | :PIDG | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
