点击放大查看
34852
| 制造商 | TE Connectivity Ltd. |

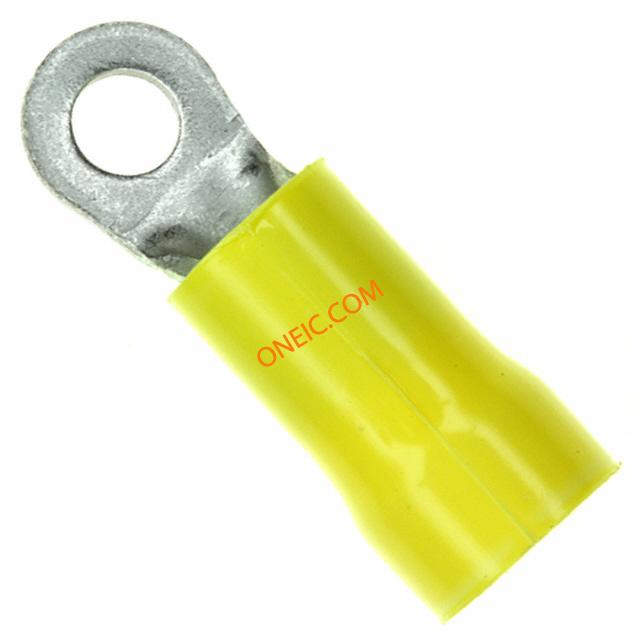

| 描述 | Ring Tongue Terminal 10-12AWG 24.21mm Tin Loose Piece Terminals RING TONGUE 12-10 CONN RING 10-12 AWG #6 PL-GRIP Ring Tongue Terminal 10-12AWG 24.21mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, YELLOW TERMINAL;RINGTONGUE;12-10AWG;YLLW;STUDSZ6 TERMINAL,PG R 12-10 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 600 VAC | ||
机械参数
| 颜色 | Yellow | 深度 | 4.14 mm |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.039" (0.99mm) |
| 绝缘类型 | Insulated | 螺钉尺寸 | 6 |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3.5 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 总宽度 | 0.281" | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 0.953" (24.21mm) |
| 主要材料 | Ring | 绝缘直径 | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.281" (7.14mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 线规或范围 - AWG | :12AWG |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 852 | 产品特性 | Serrated Termination |
| 制造商全称 | PLASTI-GRIP | ||
