点击放大查看

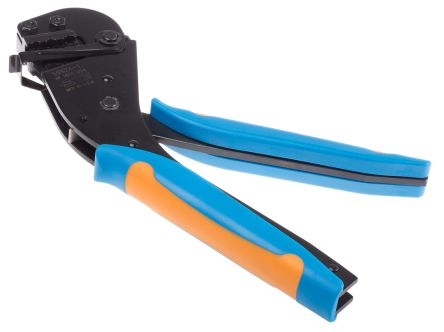

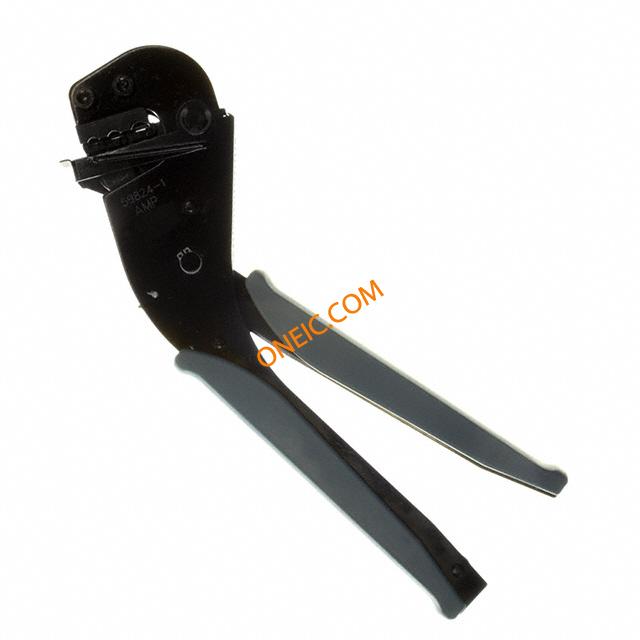

59824-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals |
| 分类 |
商业参数
| 产品 | Crimpers | 交货时间 | 21 Days |
| 子类别 | Assembly Tools | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 重量 | 0.826 | 包装方式 | Bulk |
| 导线线规 | 22 → 10 AWG | 连接器类型 | Splice, Terminal |
| 适用端子尺寸 | 22-10 AWG | 筒体内径 | :22AWG to 10AWG |
产品信息
| 类型 | Tool | 产品特性 | Side Entry, Ratchet |
| 工具类型 | Hand Crimper | 射频系列/标准 | 59824 |
| 适用产品/相关产品 | Splices and Terminals, 10-22 AWG | ||
