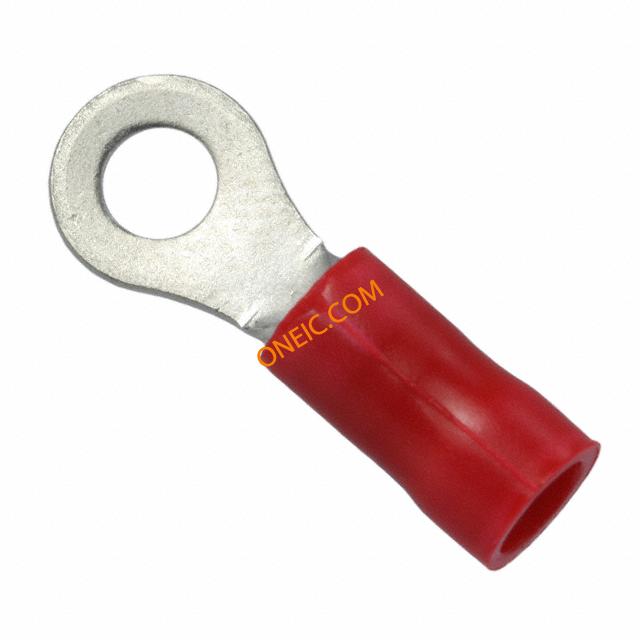

8-34144-1

点击放大查看

8-34144-1

制造商
TE Connectivity Ltd.
描述Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Box Terminals 22-16AWG RNG TERM Ring and Spade Tongue Terminals CONN RING 22-16AWG #6 P-G Ring Tongue Terminal 16-22AWG 20.55mm 7.14mm Tin Box Search Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SEE512-442434144 PG 6 RING 22-16COMM 22-18MIL
分类
连接器解决方案压接与焊接端子/接头片形压接端子
对参数有疑问？问 AI 助手

商业参数

产品Ring Terminals其他名称8341441
产品类别Terminals标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS Compliant标准RoHSCompliant,ELVCompliant
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
认证机构标志No

电气参数

最大电压600电压范围600VAC
额定电压600 VAC供电电压600

机械参数

颜色Red形状RING-043
表面处理Tin重量1.631
材料（通用）Copper包装方式Bulk
厚度0.031" (0.79mm)电缆类型Regular Wire
重型No绝缘类型Insulated
螺钉尺寸6导线线规16-22 AWG
本体表面处理PLASTI-GRIP端接方式Crimp
触点形状Ring Tongue安装类型Free Hanging (In-Line)
螺柱/焊片尺寸3.5 mm端子类型Circular
行程角度Straight电缆材料Solid or Stranded
接触镀层Tin连接器样式Straight
总宽度0.281"触头材料Copper
柄部直径0.138in.绝缘颜色红色
总长度0.809" (20.55mm)刀片材料Copper
包装数量Box主要材料Ring
绝缘高度Insulation Support端接样式Wire
连接器颜色Red材料厚度0.033in.
接触件尾部长度0.84 [0.033]绝缘直径3.56 [.140] Max.
绝缘材料 - 类型Vinyl位数1
外缘宽度0.281" (7.14mm)绝缘材料 - 材质Poly-Vinyl Chloride (PVC)
舌片内部开口.84 mm [ .033 in ]螺纹/螺钉/孔尺寸3.51 mm [ .138 in ]
供应商器件封装PLASTI-GRIP支撑面板厚度Insulation Support
线规或范围 - AWG509 – 3,260线规或范围 - mm²0.30-1.40² [22-16]
外径-未扩张3.56 mm [ .14 in ]

产品信息

类型Ring Tongue Terminal连接器性别Female
系列341产品特性Serrated Termination
可密封否检查插槽否
制造商全称AMP

环境参数

工作温度105

文档与媒体

在线文档
8-34144-1?RQPN=8-34144-1
在线文档
TE.Connect?C=1&PN=8-34144-1&M=BYPN&LG=1&I=13
