点击放大查看

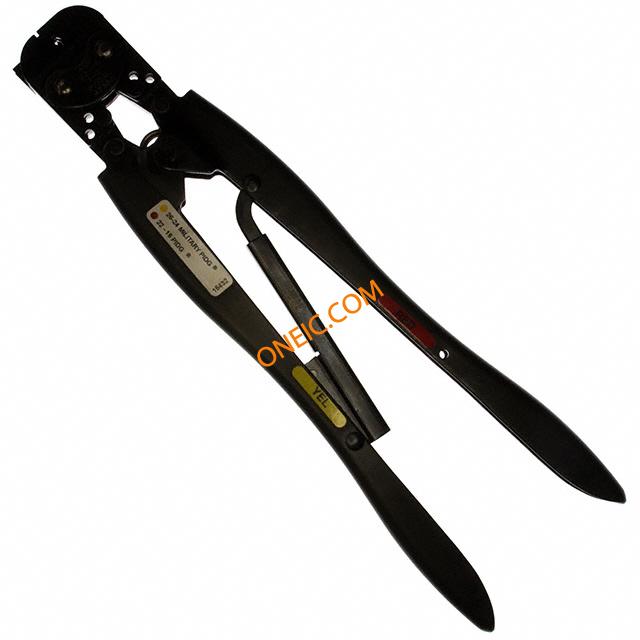

47386
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT |
| 分类 |
商业参数
| 产品 | Crimpers | 交货时间 | 21 Days |
| 子类别 | Assembly Tools | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 适用端子尺寸 | 22-16 AWG | 配接方向 | :Connectors |
产品信息
| 类型 | Crimp Tool | 产品特性 | Side Entry, Ratchet |
| 功能 | Long handle PIDG crimper hand tool | 工具类型 | Hand Crimper |
| 适用产品/相关产品 | Splices and Terminals, 16-26 AWG | ||
文档与媒体
