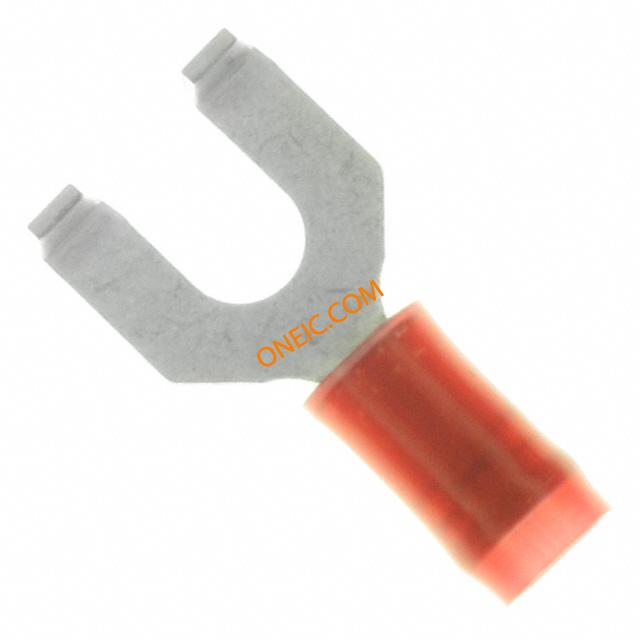

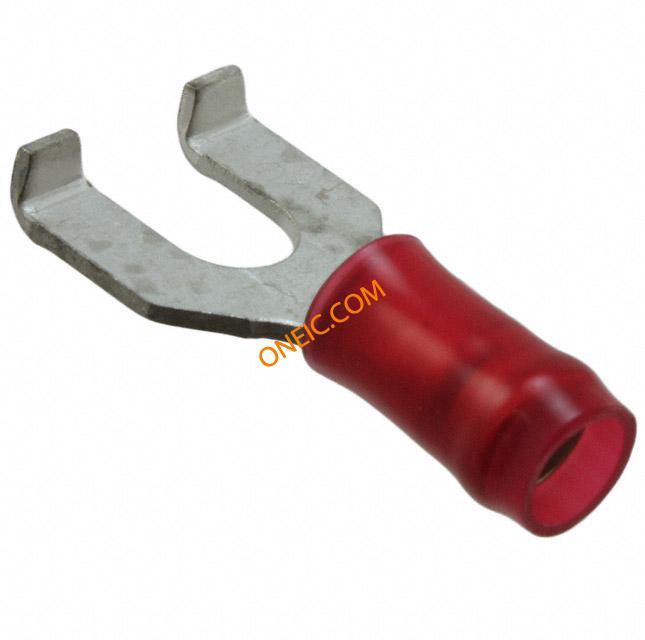

8-32498-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Flanged Spade Tongue Terminal 16-22AWG 21.08mm 10.57mm Tin Loose Piece Terminals 22-16AWG PIDG SPADE FLANGE Ring and Spade Tongue Terminals CONN SPADE FLANGED 16-22 AWG #8 Flanged Spade Tongue Terminal 16-22AWG 21.08mm 10.57mm Tin Loose Piece Search Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SEE512-449332498 PIDG SPDFLG 22-16COMM22-18MIL8 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 形状 | SPADE-024 |
| 表面处理 | Tin | 重量 | .963 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 16-22 AWG | 本体表面处理 | PIDG |
| 端接方式 | Crimp | 触点形状 | Spade Tongue, Flanged |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.16 mm |
| 端子类型 | Flanged | 行程角度 | Straight |
| 电缆材料 | Solid or Stranded | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.416" | 触头材料 | Copper |
| 柄部直径 | 0.164in. | 总长度 | 0.830" (21.08mm) |
| 包装数量 | Loose Piece | 主要材料 | Fork |
| 绝缘高度 | Insulation Support | 端接样式 | Wire |
| 连接器颜色 | Red | 材料厚度 | 0.033in. |
| 接触件尾部长度 | 0.84 [0.033] | 绝缘直径 | 3.56 [.140] Max. |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.416" (10.57mm) |
| 端接长度 | 0.404" (10.26mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | 0.171" (4.34mm) | 螺纹/螺钉/孔尺寸 | 4.17 mm [ .164 in ] |
| 供应商器件封装 | PIDG | 支撑面板厚度 | Insulation Support |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 外径-未扩张 | 3.56 mm [ .14 in ] | 环中心到端接长度 | 0.250" (6.35mm) |
产品信息
| 类型 | Flanged Spade Tongue Terminal | 连接器性别 | Female |
| 系列 | 325 | 产品特性 | Serrated Termination |
| 检查插槽 | 否 | 制造商全称 | AMP |
