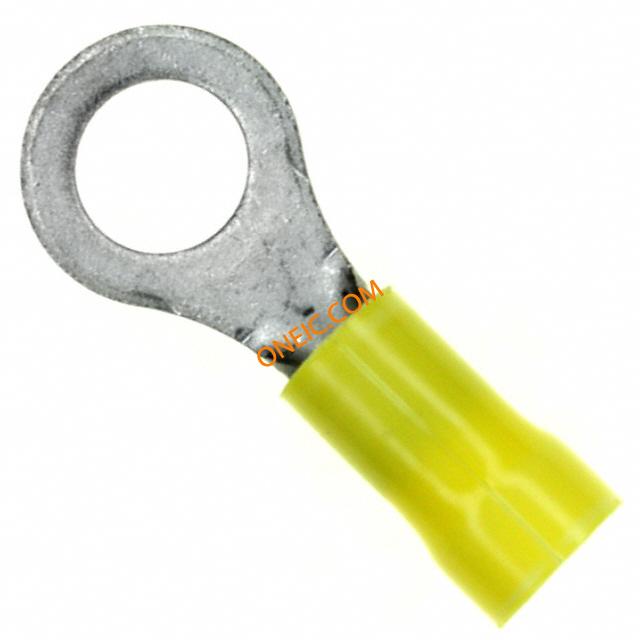

8-34856-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 33.71mm 13.49mm Tin Loose Piece Terminals TERM PG R 12-10 5/16 TERM PG R 12-10 5/16 Ring and Spade Tongue Terminals CONN RING 10-12 #5/16 P-G Ring and Spade Tongue Terminals Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 5/16IN, YELLOW TERMINAL,PG R 12-10 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8348562 |
| 标准包装规格 | 50 | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 额定电压 | 600 VAC | 供电电压 | 600 |
机械参数
| 颜色 | Yellow | 形状 | RING-043 |
| 表面处理 | Tin | 重量 | 0.118 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.040" (1.02mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 7.93 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 1.327" (33.71mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 绝缘直径 | 6.35 [.250] Max. | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.531" (13.49mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 舌片内部开口 | 1.07 [0.042] | 供应商器件封装 | PLASTI-GRIP |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :Plasti-Grip |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
环境参数
| 温度范围 | 90 | 工作温度 | + 90 C |
