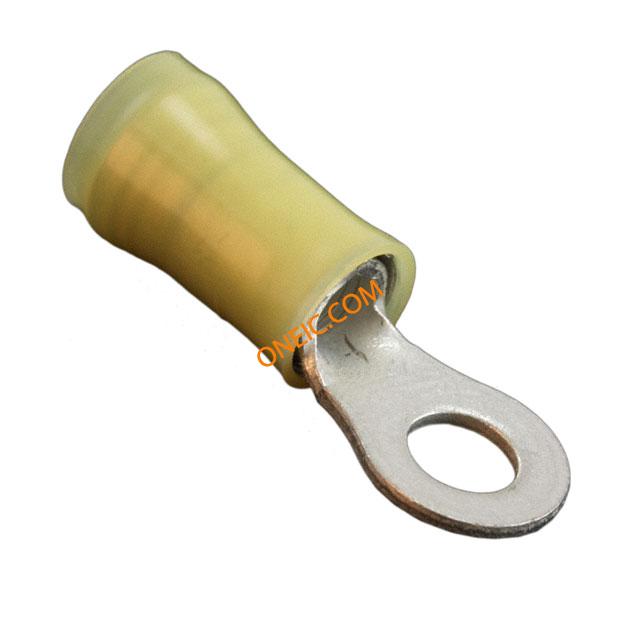

8-35109-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin Loose Piece Terminals TERMINAL PIDG R 12-1 Ring and Spade Tongue Terminals CONN RING 12-10AWG #10 PIDG Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP YELLOW SEE512-448135109 TERMINAL,PIDG R 12-10 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8351091 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 电压范围 | 300VAC | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 0.227 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.039" (0.99mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 10 | 导线线规 | 10-12 AWG |
| 本体表面处理 | PIDG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4.82 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.375" | 触头材料 | Copper |
| 柄部直径 | 0.197in. | 绝缘颜色 | :Yellow |
| 总长度 | 1.083" (27.51mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 材料厚度 | 0.039in. |
| 接触件尾部长度 | 0.99 [0.039] | 绝缘直径 | 6.35 [.250] Max. |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.375" (9.53mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 351 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
文档与媒体
相关型号
679300-1
te connectivity / amp
Connector Accessories Terminals/Splices Tool Crimping Head Crimpers 1210 PIDG CRIMP HEAD TOOL 12-10AWG PIDG CRIMP HEAD 1210 PIDG CRIMP HEAD
59287-2
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HHHT PIDG L EXP 12-10 TOOL HAND HEAVY PIDG 10-12AWG Crimping tool, 59287-2, TE Connectivity HHHT PIDG L EXP 12-10
35109
TE Connectivity AMP Connectors
Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin Loose Piece Terminals NYLON RING 12-10 10 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #10 PIDG Ring Tongue Terminal 10-12AWG 27.51mm 9.53mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP YELLOW TERMINAL, RING, 12-10AWG AMP;TERMINAL;RINGTONGUE;12-10AWG;YELLOW;STUDSIZE10 TE Connectivity PIDG 系列, 黄色 绝缘 镀锡触芯 环形压接端子 , M5 (#10) 螺栓, 0.197in内环直径, 1.083in总长 TERMINAL,PIDG R 12-10 10
59828-1
te connectivity / amp
TETRA-CRIMP DIE 12-10 Punches & Dies TETRA-CRIMP DIE 12-1 TOOL TETRA-CRIMP DIE 12-10AWG Tetra-Crimp Die 12-10
59239-4
te connectivity / amp

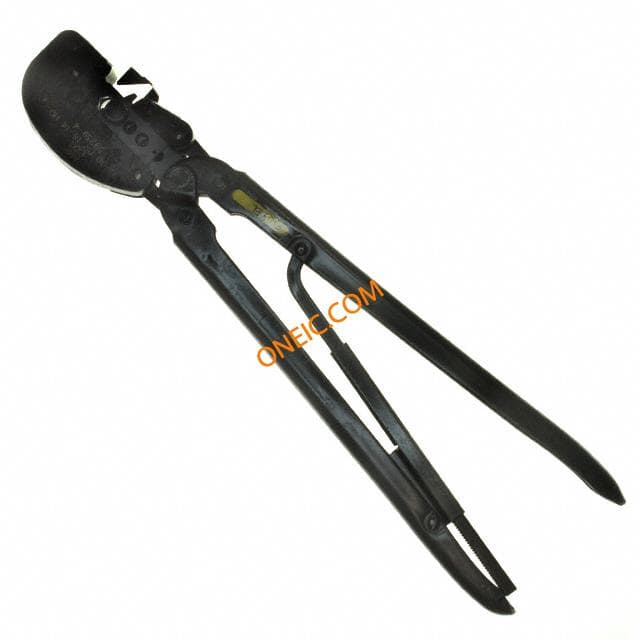

General Hand Tool Used In The Aircraft And Military Industries Crimpers HHHT CRIMP TOOL 12-10 AWG HAND CRIMPER PIDG 10-12 Hand crimp tool, PIDG,PLASTI-GRIP,yellow Connector Accessories Hand Crimp Tool HAND CRIMP TOOL, RATCHET, PIDG TERMINALS & SPLICES Crimper;HeavyHeadRatchet;PIDG,PLASTI-GRIP;12-10AWG;306106-2,306107-2Die Crimping tool, 59239-4, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 , 适用于16 → 10 AWG 线规格 HHHT PIDG 12-10
