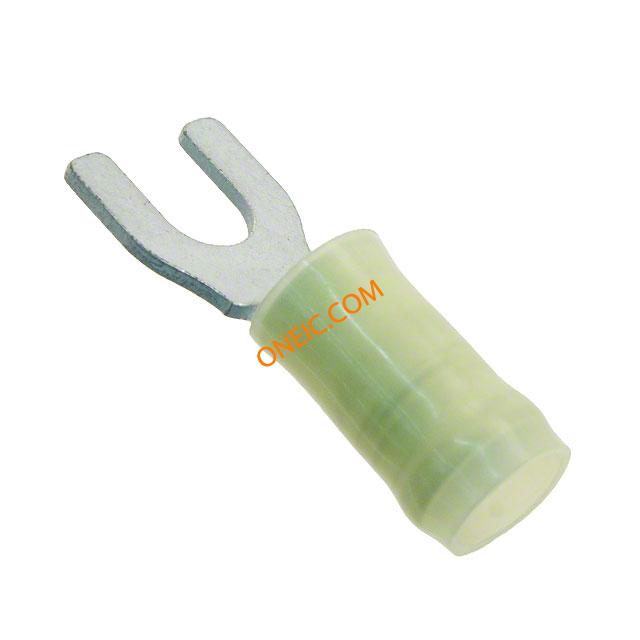

8-32589-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Spade Tongue Terminal 10-12AWG 27.81mm 10.31mm Tin Loose Piece Terminals SPADE 12-10 #10 Ring and Spade Tongue Terminals CONN SPADE 10-12 AWG #10 PIDG Spade Tongue Terminal 10-12AWG 27.81mm 10.31mm Tin Loose Piece Product Highlights:Terminal Shape = Spade TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, SPADE/FORK, #10, CRIMP, YELLOW SEE512-437532589 TERMINAL,PIDG SPD 12-10 10 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85411000 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Yellow | 形状 | SPADE-020 |
| 表面处理 | Tin | 重量 | 0.118 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 10-12 AWG | 本体表面处理 | PIDG |
| 端接方式 | Crimp | 触点形状 | Spade Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Fork / Spade Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.406" |
| 触头材料 | Copper | 柄部直径 | 0.197in. |
| 绝缘颜色 | :Yellow | 总长度 | 1.095" (27.81mm) |
| 包装数量 | Loose Piece | 主要材料 | Fork |
| 绝缘高度 | Insulation Support | 材料厚度 | 0.040in. |
| 接触件尾部长度 | 1.02 [0.040] | 绝缘直径 | 5.84 [.230] Max. |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.406" (10.31mm) |
| 端接长度 | 0.591" (15.01mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 舌片内部开口 | 0.197" (5.00mm) | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 环中心到端接长度 | 0.296" (7.52mm) | ||
产品信息
| 类型 | Spade Tongue Terminal | 连接器性别 | Female |
| 系列 | :PIDG | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
