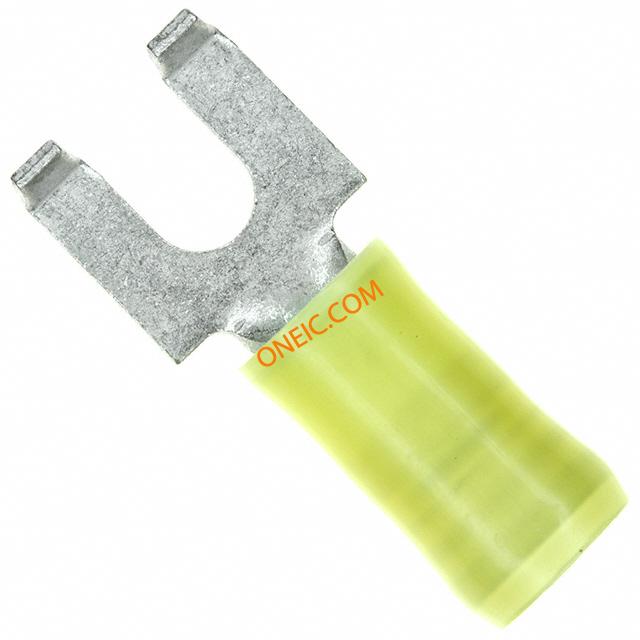

8-32510-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Flanged Spade Tongue Terminal 10-12AWG 25.83mm 10.56mm Tin Loose Piece Terminals TERMINAL PIDG SPD FL Ring and Spade Tongue Terminals CONN SPAD FLG 10-12 AWG #8 PIDG Flanged Spade Tongue Terminal 10-12AWG 25.83mm 10.56mm Tin Loose Piece Product Highlights:Terminal Shape = Spade Tongue, FlangedReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SEE512-449632510 TERMINAL,PIDG SPD FLG 12-10 8 |
| 分类 |
商业参数
| 产品 | Fork Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 形状 | SPADE-024 |
| 表面处理 | Tin | 重量 | 2.516 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 10-12 AWG | 本体表面处理 | PIDG |
| 端接方式 | Crimp | 触点形状 | Spade Tongue, Flanged |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 mm |
| 端子类型 | Flanged | 行程角度 | Straight |
| 电缆材料 | Solid or Stranded | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.416" | 触头材料 | Copper |
| 柄部直径 | 0.164in. | 绝缘颜色 | 黄色 |
| 总长度 | 1.017" (25.83mm) | 包装数量 | Loose Piece |
| 主要材料 | Fork | 绝缘高度 | Insulation Support |
| 端接样式 | 叉形舌片 | 连接器颜色 | Yellow |
| 材料厚度 | 0.042in. | 接触件尾部长度 | 1.07 [0.042] |
| 绝缘直径 | 5.84 [.230] Max. | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.416" (10.57mm) | 端接长度 | 0.591" (15.01mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | 0.171" (4.34mm) |
| 螺纹/螺钉/孔尺寸 | 4.17 mm [ .164 in ] | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | 外径-未扩张 | 5.84 mm [ .23 in ] |
| 环中心到端接长度 | 0.250" (6.35mm) | ||
产品信息
| 类型 | Flanged Spade Tongue Terminal | 连接器性别 | Female |
| 系列 | 325 | 产品特性 | Serrated Termination |
| 检查插槽 | 否 | 制造商全称 | AMP |
