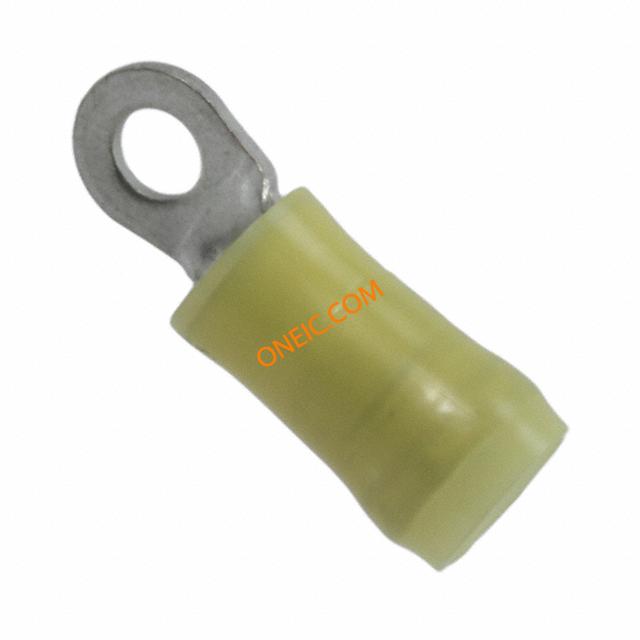

8-35149-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 24.21mm 7.14mm Tin Loose Piece Terminals NYL-RING 12-10 YEL #6 Ring and Spade Tongue Terminals CONN RING 12-10AWG #6 PIDG Ring Tongue Terminal 10-12AWG 24.21mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, YELLOW SEE512-447935149 TERMINAL,PIDG R 12-10 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8351492 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85444920 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 电压范围 | 300VAC | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 深度 | 7.14 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 重量 | 0.113 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.040" (1.02mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 6 |
| 导线线规 | 10-12 AWG | 本体表面处理 | PIDG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3.5 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.281" |
| 触头材料 | Copper | 柄部直径 | 0.145in. |
| 绝缘颜色 | :Yellow | 总长度 | 0.953" (24.21mm) |
| 刀片材料 | Copper | 包装数量 | Loose Piece |
| 主要材料 | Ring | 绝缘高度 | Insulation Support |
| 材料厚度 | 0.04in. | 接触件尾部长度 | 1.02 [0.040] |
| 绝缘直径 | 3.81-6.35 [.150-.250] | 外缘宽度 | 0.281" (7.14mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 351 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
