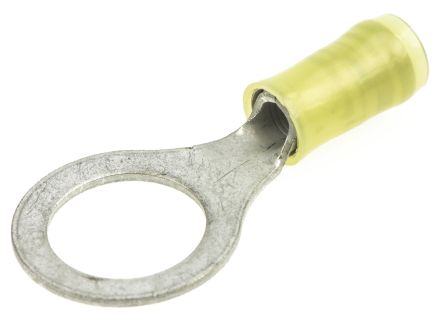

323784
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Ring Tongue Terminal 10-12AWG 40.48mm 19.05mm Tin Loose Piece Terminals TERMINAL PIDG R 12-1 Ring and Spade Tongue Terminals CONN RING 10-12AWG #1/2 YELLOW Ring terminal,PIDG,yellow,AWG 12-10, M12 PIDG Ring Tongue Terminal 10-12AWG 40.48mm 19.05mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, 12MM, YELLOW Ringterminal,PIDG,yellow,AWG12-10,M12 TE Connectivity PIDG 系列, 黄色 镀锡触芯 环形压接端子 , M12 螺栓, 13.08mm内环直径, 40.48mm总长 TERMINAL,PIDG R 12-10 1/2 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 长度 | 40.49 mm |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.040" (1.02mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 12mm |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 12 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 绝缘颜色 | :Yellow | 总长度 | 40.49 [1.594] |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Insulation Support | 连接器颜色 | Yellow |
| 接触件尾部长度 | 1.02 [0.040] | 绝缘直径 | 3.81-5.84 [.150-.230] |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.750" (19.05mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | PIDG |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 外径-未扩张 | :5.84mm | ||
产品信息
| 类型 | PIDG Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 323 | 产品特性 | Serrated Termination |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | :105°C | ||
