点击放大查看

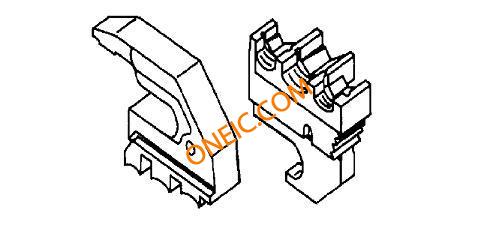

169404
| 制造商 | TE Connectivity Ltd. |

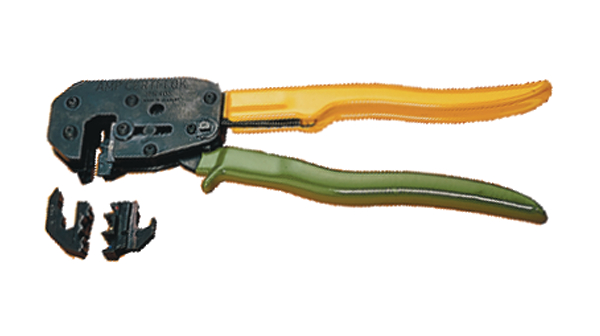

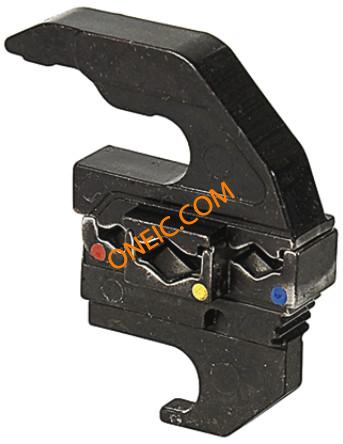

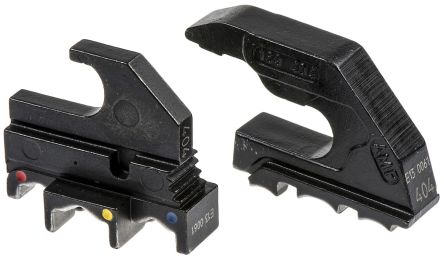

| 描述 | Connector Accessories Die Set Punches & Dies CERTI-LOK DIE CERTI-LOK PIDG and PLASTI-GRIP die set DIE SET, PIDG CERTI-LOKDIE,PIDGANDPLASTI-GRIPTERMINALS,ANDPIDGWINDOWSPLICES Application Tooling; Product Classification: Tooling Not relevant for RoHS and/or ELV compliance Lead Free Solder Processes: Not relevant for lead free process Matrix insert 0.25...6.6 mm², 169404, TE Connectivity TE Connectivity CERTI-LOK 系列 压接模具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals CERTI-LOK DIE |
| 分类 |
商业参数
| 产品 | Dies | 产品类别 | Punches & Dies |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 重量 | 0.08 | 包装方式 | Bulk |
| 导线线规 | :0.25mm² | 配接方向 | :Connectors |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | :6.6mm² |
产品信息
| 类型 | Die Set | 系列 | :PG PIDG |
| 射频系列/标准 | 169404 | ||
