34853
| 制造商 | TE Connectivity Ltd. |

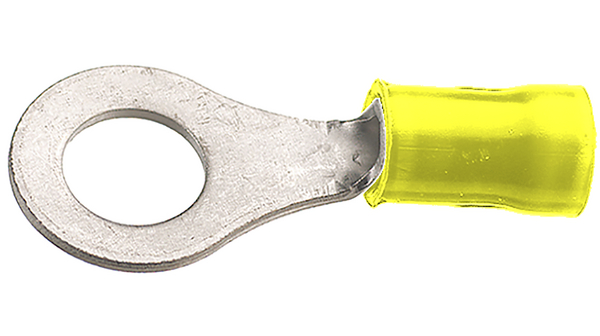

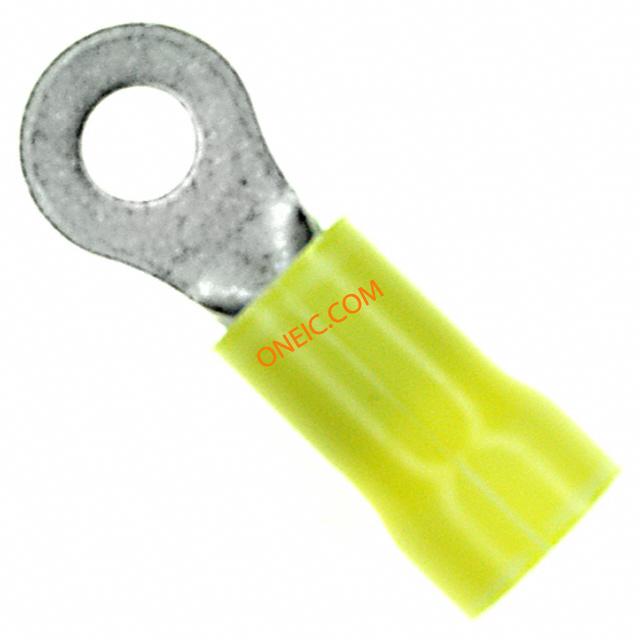

| 描述 | Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Terminals RING 12-10AWG STUD 8 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #8 PLST-GRIP Ring terminal, PLASTI-GRIP, yellow, M4 Ring Tongue Terminal 10-12AWG 27.89mm 9.52mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, PLASTI-GRIP TERMINAL;RINGTONGUE;12-10AWG;YLLW;STUDSZ8 Ring terminal; M4; Ø:4.17mm; 3÷6mm2; crimped; for cable; insulated Ring cable lug yellow 4.3 mm, 34853, TE Connectivity TE Connectivity PLASTI-GRIP 系列, 黄色 绝缘 镀锡触芯 环形压接端子 , M4 螺栓, 4.34mm内环直径, 27.89mm总长 TERMINAL,PG R 12-10 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A0969 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 驱动类型 | ring terminal | 额定电压 | 600 VAC |
| 供电电压 | 600 | ||
机械参数
| 颜色 | Yellow | 深度 | 9.52 mm |
| 形状 | RING-043 | 表面处理 | Tin |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.040" (1.02mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.16 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.375" |
| 触头材料 | Copper | 套圈材料 | insulated |
| 绝缘颜色 | :Yellow | 总长度 | 1.098" (27.89mm) |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 内径（直径） | 4.17mm | 绝缘高度 | Insulation Support |
| 连接器颜色 | Yellow | 绝缘直径 | 6.35 [.250] Max. |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.375" (9.53mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | 舌片内部开口 | 1.07 [0.042] |
| 安装孔直径 | M4 | 供应商器件封装 | PLASTI-GRIP |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :0.25" |
产品信息
| SPG | 1 | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 853 |
| 产品特性 | Serrated Termination | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 单元数量 | 1 |
环境参数
| 温度范围 | 90 | 工作温度 | + 90 C |
相关型号
679300-1
te connectivity / amp
Connector Accessories Terminals/Splices Tool Crimping Head Crimpers 1210 PIDG CRIMP HEAD TOOL 12-10AWG PIDG CRIMP HEAD 1210 PIDG CRIMP HEAD
59828-1
te connectivity / amp
TETRA-CRIMP DIE 12-10 Punches & Dies TETRA-CRIMP DIE 12-1 TOOL TETRA-CRIMP DIE 12-10AWG Tetra-Crimp Die 12-10
59239-4
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers HHHT CRIMP TOOL 12-10 AWG HAND CRIMPER PIDG 10-12 Hand crimp tool, PIDG,PLASTI-GRIP,yellow Connector Accessories Hand Crimp Tool HAND CRIMP TOOL, RATCHET, PIDG TERMINALS & SPLICES Crimper;HeavyHeadRatchet;PIDG,PLASTI-GRIP;12-10AWG;306106-2,306107-2Die Crimping tool, 59239-4, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 , 适用于16 → 10 AWG 线规格 HHHT PIDG 12-10
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
91965-2
te connectivity / amp
Connector Accessories Coaxial Die Set Punches & Dies S.D.E.PREM.DIE ASSY 12-10 PIDG S.D.E.PREM.DIE ASSY 12-10 PIDG
1-49935-0
te connectivity / amp
DA BAT TL HD 22-10 SOLIS Hand Tools DA BAT TL HD 22-10 SOLIS TOOL HEAD CRIMP 22-10AWG SOLIS
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
169400
te connectivity / amp
Assembly Tools, Ratcheted Hand Tool Crimpers CERTI-LOK Hand Tools CERTI-LOK TOOL HAND CRIMP CERTI-LOK CERTI-LOK hand crimping tool Frame Only Certi-Lok CERTI-LOCKHANDTOOLFRAME Crimping pliers 0.25...6.6 mm², 169400, TE Connectivity TE Connectivity CERTI-LOK 系列 压接工具框架 CERTI-LOK
169060-8
te connectivity / amp
SUPER CHAMP Crimpers SUPER CHAMP Hand Tools SUPER CHAMP AMP Super champ II crimp tool Super Champ Hand Tool CRIMP TOOL, SUPER CHAMP II AMPSuperchampIIcrimptool Crimp & strip pliers, 169060-8, TE Connectivity TE Connectivity SUPER CHAMP II 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具
165430
TE Connectivity AMP Connectors

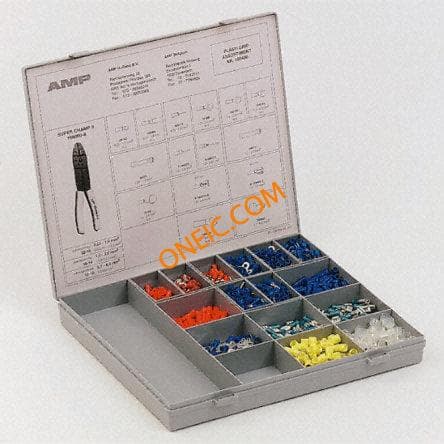

REPAIR KIT AMPLIVSL Power Transformers REPAIR KIT AMPLIVSL Plasti-grip service kit,0.5-6sq.mm wire SERVICE KIT, PLASTI-GRIP Plasti-gripservicekit,0.5-6sq.mmwire PLASTI-GRIPSERVICEKIT TE Connectivity
