点击放大查看

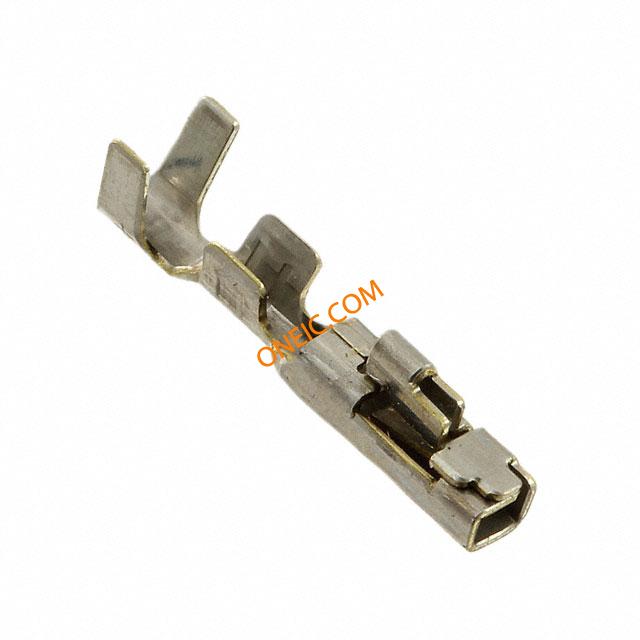

175151-2
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Contact, Rec, 26-22 AWG, U-P Board to Board & Mezzanine Connectors UNIV PWR REC CONT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmReceptacleStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector CONTACT, FEMALE, 26-22AWG, CRIMP CONN RCPT 26-22AWG CRIMP PRE-TIN TE Connectivity AMP Universal Power 系列 母 压接接线端子, 压接, 镀锡触点 AMP UNIVE. POWER CONN REC CONT |
| 分类 |
商业参数
| 其他名称 | A111075CT | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5000 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 12 A |
机械参数
| 重量 | 0 | 包装方式 | Reel |
| 导线线规 | :22AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 触头材料 | Brass | 第一触头极性 | :Socket |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :26AWG |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Amp Universal Power | 产品子类型 | Contacts |
环境参数
| 工作温度 | +105°C | ||
