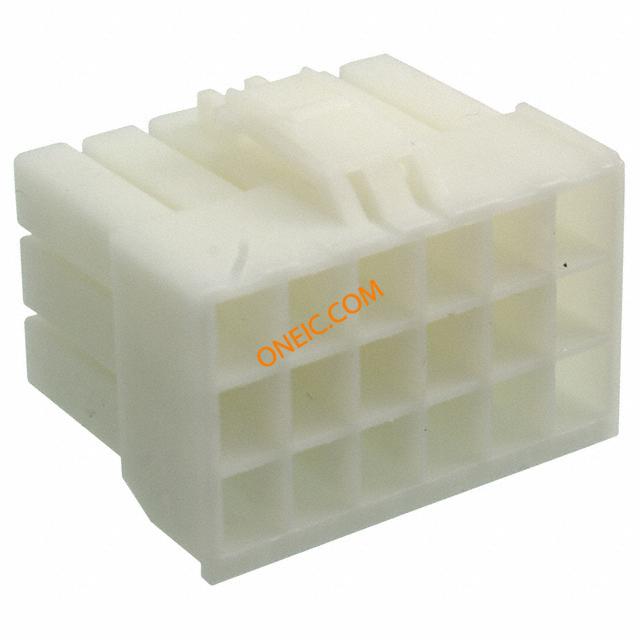

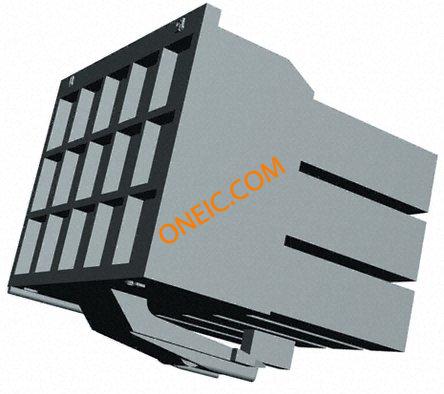

176280-1
| 制造商 | |
| 描述 | Conn Housing PL 18 POS 3.96mm Crimp ST Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG 18POS UNIVERSAL POWER AMP universal hsing,plug,18 skt contact Power to the Board PLUG 18P UNIV PWR 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:HousingPlugPackaging Method = Loose Piece4.60 x 3.96 mm Centerline, MatrixNumber of Positions = 18Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPuniversalhsing,plug,18sktcontact TE Connectivity AMP Universal Power 系列 3 行 3.96mm 节距 18 路 直 公 PCB 壳体 UNIV POWER PLUG HSG 18P F/H |
| 分类 |
商业参数
| 标准包装规格 | 500 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 输入电阻 | 1000 | 最大额定电流 | 7 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 19.3mm |
| 间距 | 3.96 mm | 宽度 | 18.95mm |
| 高度 | 16.3 mm [ .64 in ] | 长度 | 24.9mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 16-26 AWG | 方向 | 直 |
| 排间距 | 0.181" (4.60mm) | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.181" (4.60mm) |
| 柱间距 | 4.60 x 3.96 [.181 x .156] | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | 不带 |
| 排数 | 3 | 封装形式 | Plug |
| 插入件材料 | 铜合金 | 锁定特性 | Latch |
| 壳体材料 | Nylon | 包装数量 | Loose Piece |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
| 兼容外壳尺寸（如TM-700等） | 母端外壳 | 安装孔直径 | 带有 |
| 典型触点布局 | Matrix | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 176280 |
| 制造商全称 | 176280Series | 产品子类型 | Housing |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | Universal Power Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
文档与媒体
相关型号
