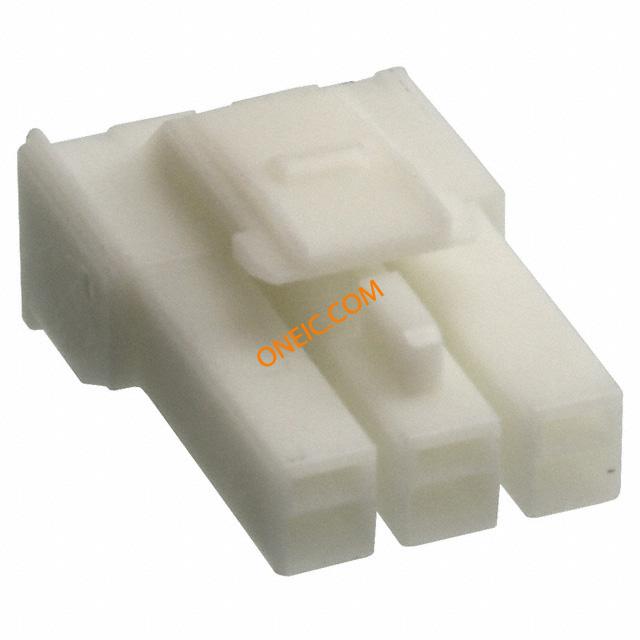

176272-1
| 制造商 | |
| 描述 | Conn Housing PL 3 POS 3.96mm Crimp ST Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG 3POS .156 IN-LINE NATL Power to the Board PLUG 3P .156 IN-LINE Conn Housing PL 3 POS 3.96mm Crimp ST Loose Piece Product Highlights:HousingPlugLoose Piece3.96 mm Centerline, MatrixNumber of Positions = 3Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector PLUG, 3 WAY AMP UNIVERSAL POWER PLUG 3P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 重量 | 0.656 | 包装方式 | Bulk |
| 导线线规 | 16-26 AWG | 触头类型 | Female Socket |
| 柱间距 | 3.96 [.156] | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | :- |
| 紧固类型 | Latch Lock | 安装样式 | SMD/SMT |
| 排数 | 1 | 锁定特性 | Latch |
| 触头材料 | :- | 壳体材料 | Nylon |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 外壳尺寸-插件 | :- |
| 典型触点布局 | In-Line | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMP Universal Power |
| 产品子类型 | Housing | ||
