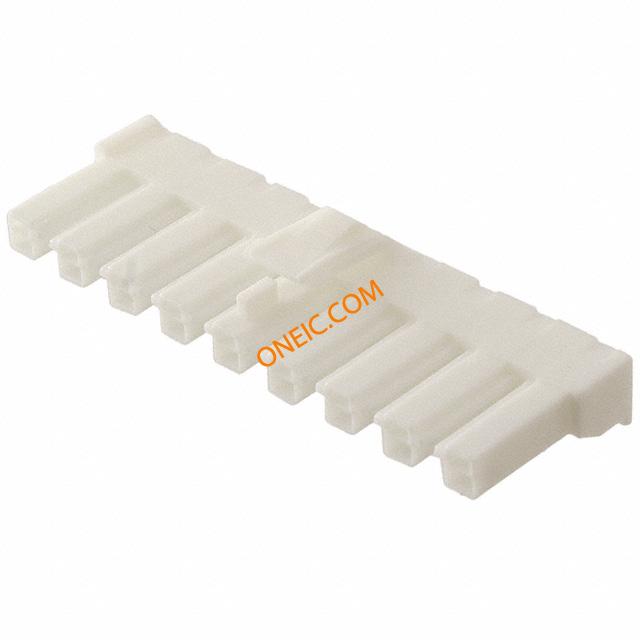

9-178842-1
| 制造商 | |
| 描述 | Conn Housing PL 9 POS 6.2mm Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN HEADER 9POS IN-LINE TIN NAT Hard Metric Connectors AMP U/P SGL ROW PLUG HSG 9P 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:HousingPlugPackaging Method = Loose Piece6.20 mm Centerline, MatrixNumber of Positions = 9Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMP U/P SGL ROW PLUG HSG 9P |
| 分类 |
商业参数
| 标准包装规格 | 500 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 输入电阻 | 1000 |
| 最大额定电流 | 7 | ||
机械参数
| 颜色 | Natural | 间距 | 6.2 mm |
| 高度 | 7.5 mm [ .3 in ] | 长度 | 54.7 mm [ 2.15 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 16-26 AWG | 触头类型 | Female Socket |
| 柱间距 | 6.20 [.244] | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | 不带 |
| 排数 | 1 | 封装形式 | Plug |
| 插入件材料 | 铜合金 | 锁定特性 | Latch |
| 壳体材料 | Nylon | 包装数量 | Loose Piece |
| 面板安装类型 | 不带 | 端接样式 | 插座 |
| 配接方向 | Without | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 兼容外壳尺寸（如TM-700等） | 接头组件 | 安装孔直径 | 带有 |
| 典型触点布局 | In-Line | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | Housing |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
