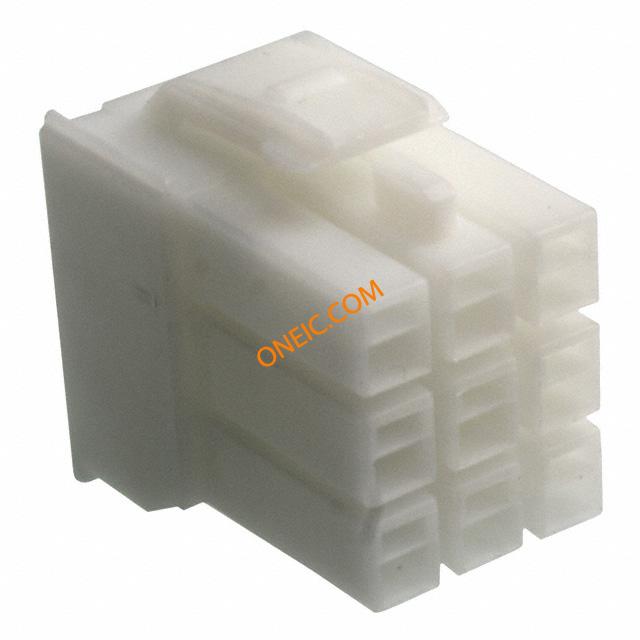

176276-1
| 制造商 | |
| 描述 | Conn Housing PL 9 POS 3.96mm Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG 9POS UNIVERSAL POWER AMP universal hsing,plug,9 skt contact Power to the Board PLUG 9P UNIV PWR AMPuniversalhsing,plug,9sktcontact TE Connectivity AMP Universal Power 系列 3 行 3.96mm 节距 9 路 直 公 PCB 壳体 AMP UNIVERSAL POWER PLUG 9P |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 300 V | 供电电压 | 600 |
| 输入电阻 | 1000 | 最大额定电流 | 7 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 19.3mm |
| 间距 | 3.96 mm | 宽度 | 13.02mm |
| 高度 | 16.2 mm [ .64 in ] | 长度 | 18.85mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 16-26 AWG | 方向 | 直 |
| 排间距 | 0.181" (4.60mm) | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.181" (4.60mm) |
| 柱间距 | 4.60 x 3.96 [.181 x .156] | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | 带有 |
| 排数 | 3 | 封装形式 | Plug |
| 插入件材料 | 铜合金 | 锁定特性 | Latch |
| 壳体材料 | Nylon | 包装数量 | Loose Piece |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | Crimp | 配接方向 | Without |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | 兼容外壳尺寸（如TM-700等） | 母端外壳 |
| 安装孔直径 | 带有 | 典型触点布局 | Matrix |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 176276 |
| 制造商全称 | 176276Series | 产品子类型 | Housing |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | Universal Power Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | - 30 C to + 105 C |
文档与媒体
相关型号
