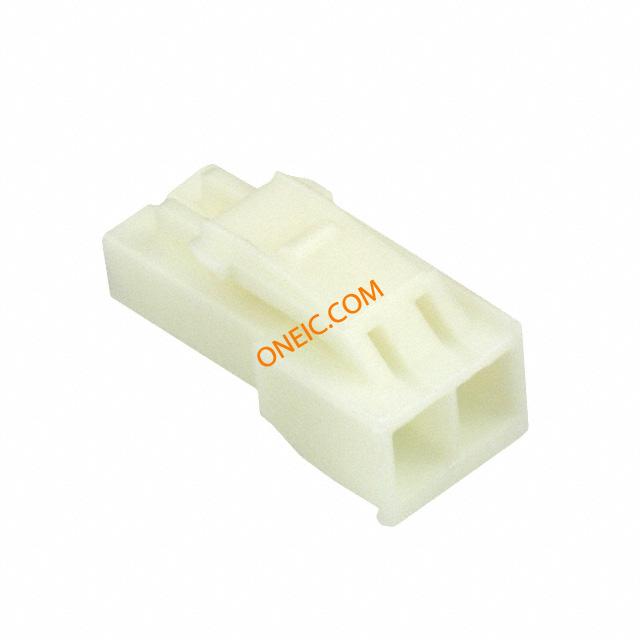

176271-1

点击放大查看

176271-1

制造商
TE Connectivity Ltd.
描述
Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece Board to Board & Mezzanine Connectors 2P PLUG HOUSING 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG HOUSING 2POS .156 Housing,plug,free hanging,3.96mm2way Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPlugLoose Piece3.96 mm Centerline, MatrixNumber of Positions = 2Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector PLUG, 2 WAY Housing,plug,freehanging,3.96mm2way TE Connectivity AMP Universal Power 系列 1 行 3.96mm 节距 2 路 直 公 电缆安装 PCB 壳体 AMP UNIVERSAL POWER PLUG 2P
分类
硬件与散热解决方案机箱机箱
对参数有疑问？问 AI 助手

商业参数

其他名称1762711产品类别Board to Board & Mezzanine Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSRoHS Compliant海关税号85366990
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压600
最大额定电流13 A最小供电电压600VAC

机械参数

颜色Natural深度19.3mm
间距3.96 mm宽度9.65mm
高度9.65 mm长度9.06mm
重量0.488包装方式Bulk
导线线规16-26 AWG触头类型Female Socket
柱间距3.96 [.156]外壳颜色Natural
安装类型Straight连接器类型Plug
接触镀层Tin紧固类型Latch Lock
排数1锁定特性Latch
触头材料Phosphor Bronze壳体材料Polyamide (PA)
总长度9.06 mm包装数量Loose Piece
主要材料Connector第一触头极性:Socket
配接方向Without触点数2
接触件端接Crimp位数2
外壳尺寸-插件:-典型触点布局In-Line
第一连接器安装类型:Cable

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列Amp Universal Power
CAD图纸3D CAD Model制造商全称176271Series
产品子类型Plugs适用产品/相关产品Universal Power Connector

环境参数

工作温度-30C to 105C

文档与媒体

在线文档
176271-1
PDF 文档
611482.pdf
在线文档
176271-1?RQPN=176271-1

相关型号

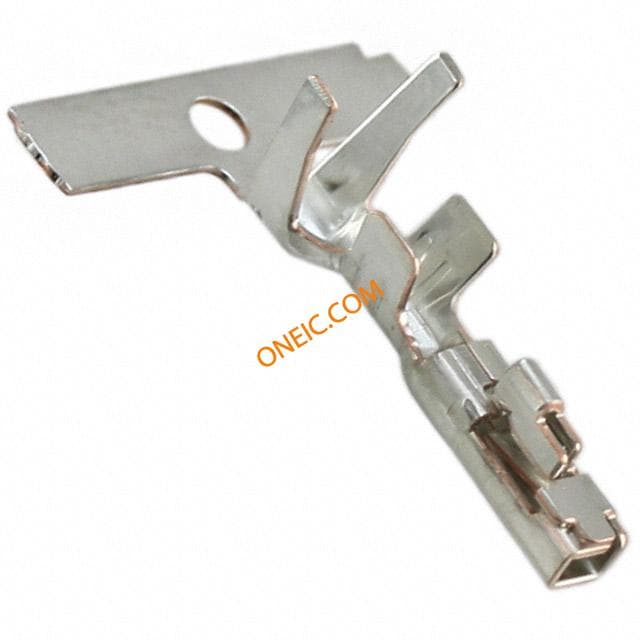

175152-1

175152-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Strip CONN RCPT 20-16AWG TIN Contact,crimp,receptacle,Sn,20-16awg Power to the Board PIN 16-20 AWG RL AU Reel of 4000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmReceptacleStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector TE Connectivity AMP Universal Power 系列 母 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER REC

¥0.0980
详情
176975-4

176975-4

te connectivity / amp

Conn Power HDR 2 POS 3.96mm Solder ST Thru-Hole 2 Terminal 1 Port Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN HEADER 2POS VERT TIN .156 AC Power Plugs & Receptacles UNIV POWER MOD R/A HEADER

¥0.7330
详情

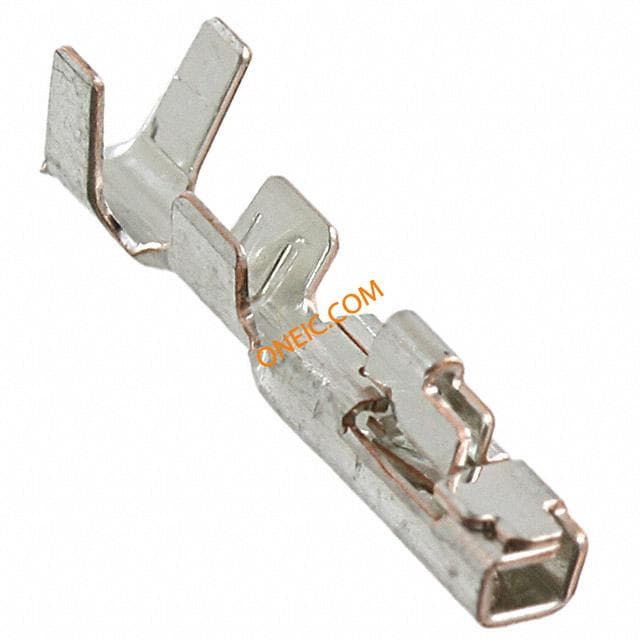

175151-1
