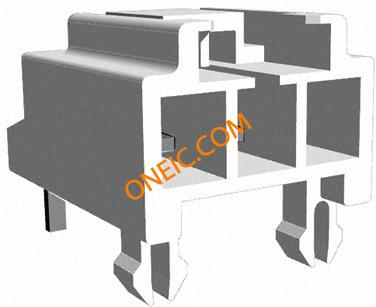

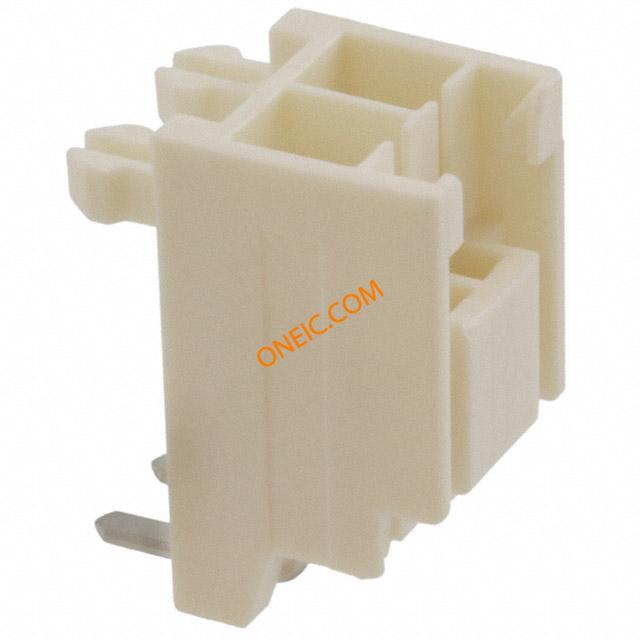

178495-1

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 2 POS 3.96mm Solder RA Thru-Hole 2 Terminal 1 Port Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN HEADER 2POS R/A .156 TIN U-P 2 Male Right Angle Heavy Duty Power Connector, Through Hole 12A,600V ac Power to the Board UP 3.96 2P DIP HDR Conn Power HDR 2 POS 3.96mm Solder RA Thru-Hole 2 Terminal 1 Port Loose Piece Product Highlights:HeaderLoose PieceBrass Contact MaterialTin Contact Mating Area Plating3.96 mm Centerline, MatrixSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPU-Pheader,plug,horizontal,2waytab TE Connectivity AMP Universal Power 系列 3.96mm节距 2路直角 PCB 针座, 焊接端接, 12A , 通孔
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Power to the Board	标准包装数量	Bulk
工厂包装数量	250

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压

600 V ac

最大额定电流

12A

机械参数

颜色	Natural	间距	3.96 mm
包装方式	Bulk	方向	直角
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole	连接器类型	Header, Shrouded
接触镀层	Tin	紧固类型	Latch Lock
安装样式	Through Hole	排数	1
触头材料	Brass	壳体材料	Nylon
端接排数	焊接	第一触头极性	Pin (Male)
触点数	2	位数	2

产品信息

类型	Power	连接器性别	HDR
系列	U-P	覆盖范围	覆盖
产品特性	Board Lock	产品子类型	Headers
加载位置数	All

环境参数

工作温度

- 30 C to + 105 C
