点击放大查看

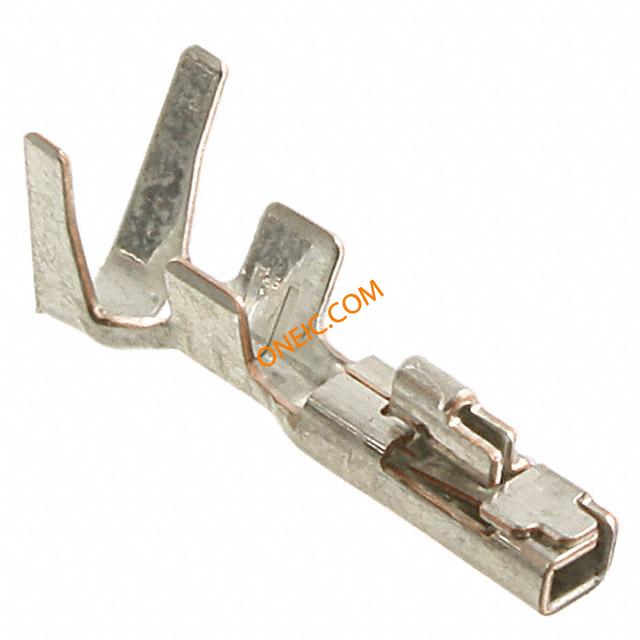

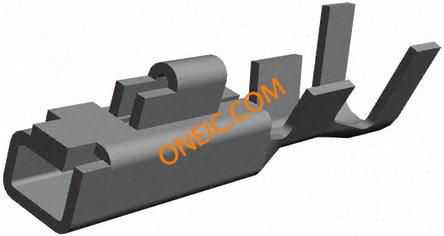

175156-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Heavy Duty Power Connectors RCPT CONTACT 20-16 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN RCPT CONTACT 20-16AWG TIN AMP universal,contact,rcp,0.50-1.40mm2 Headers & Wire Housings RCPT CONTACT 20-16 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 2.00 - 3.30 mmReceptacleLoose PieceSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPuniversal,contact,rcp,0.50-1.40mm2 TE Connectivity AMP Universal Power 系列 母 压接接线端子, 压接, 镀锡触点 UNIV POWER REC CONT L/P |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 300, 50 |
| 最大额定电流 | 12 A | 绝缘电阻 | 1000 |
机械参数
| 镀层 | 预镀锡 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Socket | 电缆直径 | 1.42mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 箔压接区域 | .8 | 插入件材料 | 铜合金 |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 包装数量 | 1000 | 端接排数 | 压接 |
| 端接样式 | Crimp | 适用端子尺寸 | No |
| 接触件端接 | Crimp | 绝缘直径 | 1.7 – 3.3 mm [ .067 – .13 in ] |
| 兼容外壳尺寸（如TM-700等） | 插头护套 | 接触件表面处理 - 配合 | 预镀锡 |
| 接触镀层厚度 | .8 µm [ 31.49 µin ] | 线规或范围 - AWG | 20-16 |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | 751 | 产品子类型 | Contacts |
| 应用细节 | Wire to Wire - Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
| 可用温度范围 | -30to+105°C | 结工作温度 | 105°C |
