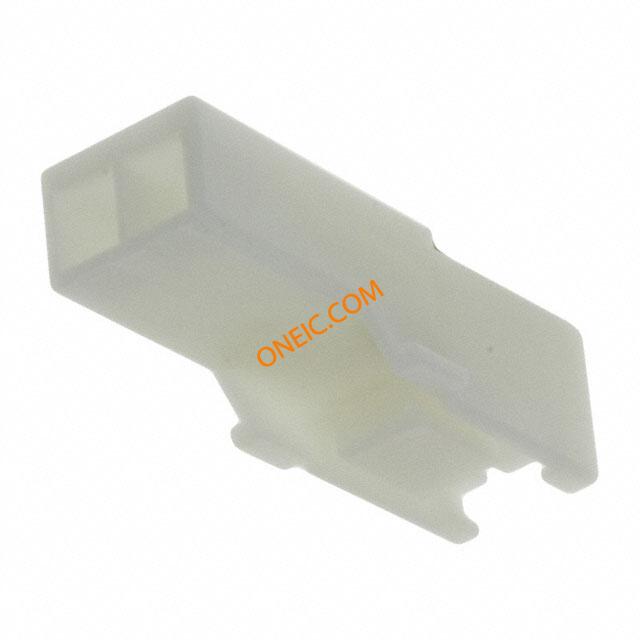

176282-1

点击放大查看

176282-1

制造商
TE Connectivity Ltd.
描述
Conn Housing RCP 2 POS 3.96mm Crimp ST Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN RCPT CAP 2POS FREE HANG Housing, FH, 2 way, Tab, U-P Power to the Board HSG CAP 1X02C F/H NAT Conn Housing RCP 2 POS 3.96mm Crimp ST Loose Piece Product Highlights:HousingReceptacle (Cap)Loose Piece3.96 mm Centerline, MatrixNumber of Positions = 2Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector HOUSING, RECEPTACLE, 3.96MM, 2WAY U-PHOUSINGFH2WAYTAB TE Connectivity AMP Universal Power 系列 3.96mm 节距 2 路 直 母 PCB 壳体 AMP UNIVERSAL POWER CAP 2P
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1762821产品类别Power to the Board
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压600 V供电电压600
最大额定电流12/Contact A最小供电电压600VAC

机械参数

颜色Natural深度29mm
间距3.96 mm宽度9.4mm
高度9.4 mm长度11.06mm
重量0.02包装方式Bulk
触头类型Tab外壳颜色Natural
安装类型Straight连接器类型Receptacle
紧固类型Latch Lock安装样式Free Hanging
排数1锁定特性Latch
本体材料:Nylon 6.6 (Polyamide 6.6)壳体材料Nylon
总长度11.06 mm包装数量Loose Piece
第一触头极性Socket (Female)配接方向Without
触点数2接触件端接Crimp
位数2中心触点材料3.96 [.156]
典型触点布局In-Line

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列176282
产品子类型Housing适用产品/相关产品Universal Power Connector

环境参数

工作温度-30C to 105C

相关型号

176271-2

176271-2

te connectivity / amp

Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. AMP UNIVERSAL POWER PLUG 2P Power to the Board AMP UNIV PWR PLG 2P

¥0.5644
详情
175154-1

175154-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. UNIV POWER TAB CONT L/P U-P 1 Male Straight Heavy Duty Power Connector, Cable Mount 12A,600V ac Board to Board & Mezzanine Connectors UNIV PWR TAB CNT L/P Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 2.00 - 3.30 mmTabLoose PieceSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPuniversal,contact,tab,0.50-1.40mm2 TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点

¥0.4624
详情

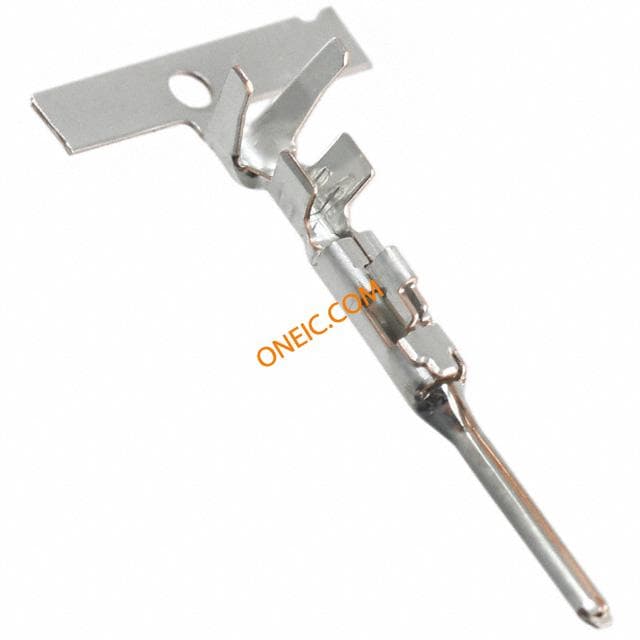

175150-1

175150-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Strip CONN CONTACT TAB 20-16AWG TIN Contact,power,crimp,tab,Sn,20-16awg Heavy Duty Power Connectors U-P TAB 20-16 CU/SN CU/SN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER CONN TAB

¥0.1972
详情
175154-2

175154-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. U/P TAB CONT L/P U-P 1 Male Straight Heavy Duty Power Connector, Cable Mount 12A,600V ac Power to the Board U/P TAB CONT L/P 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 2.00 - 3.30 mmTabLoose PieceSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector AMPuniversal,contact,tab,0.50-1.40mm2 TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点

¥0.2516
详情
176271-1

176271-1

te connectivity / amp

Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece Board to Board & Mezzanine Connectors 2P PLUG HOUSING 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN PLUG HOUSING 2POS .156 Housing,plug,free hanging,3.96mm2way Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPlugLoose Piece3.96 mm Centerline, MatrixNumber of Positions = 2Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector PLUG, 2 WAY Housing,plug,freehanging,3.96mm2way TE Connectivity AMP Universal Power 系列 1 行 3.96mm 节距 2 路 直 公 电缆安装 PCB 壳体 AMP UNIVERSAL POWER PLUG 2P

¥0.3944
详情
175149-2

175149-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount Strip CONN TAB 26-22AWG TIN Contact,power,crimp,tab,Sn,26-22awg Power to the Board AMP UNIVE POWER CONN TAB CONT Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector CONTACT,TAB,26-22AWG TE Connectivity AMP Universal Power 系列 公 压接触点, 压接, 镀锡触点 AMP UNIVE. POWER CONN TAB CONT

¥0.1136
详情
175149-1

175149-1

te connectivity / amp

Contact PIN Crimp ST Cable Mount Strip 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONTACT TAB 0.12-0.35AWG TIN Contact, Tab, 26-22 AWG, U-P Power to the Board UNIVERSAL POWER CONN TAB 175149-1 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector Contact,Tab,26-22AWG,U-P TE Connectivity AMP Universal Power 系列 公 压接接线端子, 压接, 镀锡触点 UNIVERSAL POWER CONN TAB

¥0.3121
详情
176271-6

176271-6

te connectivity / amp

Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece AC Power Plugs & Receptacles AMP UNIVERSAL POWER PLUG 2P 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. AMP UNIVERSAL POWER PLUG 2P

¥0.4012
详情

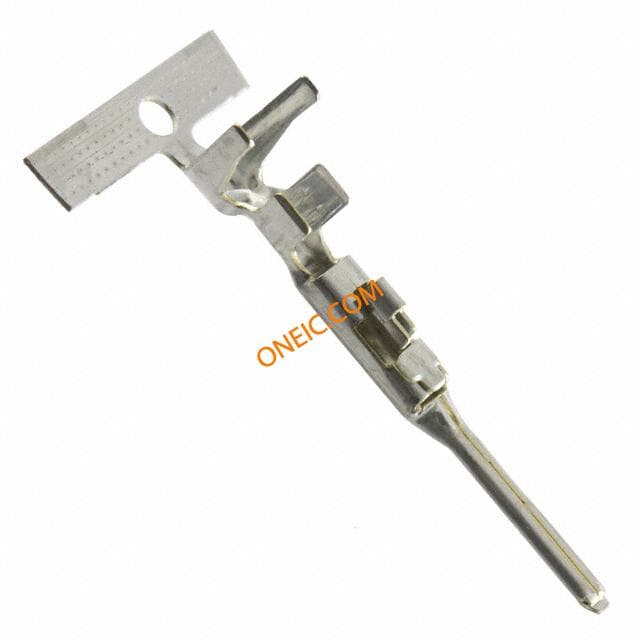

175150-2

175150-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount Strip CONTACT TAB 20-16AWG Heavy Duty Power Connectors U-P TAB 20-16 BR/SN 175150-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 1.70 - 3.30 mmTabStripSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector CONTACT, PLUG, 20-16AWG AMP UNIVE. POWER CONN TAB CONT

¥0.0931
详情
175153-2

175153-2

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. CONN TAB CONTACT 26-22AWG TIN Power to the Board U/P TAB CONT L/P 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:ContactWire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = 1.20 - 2.01 mmTabPackaging Method = Loose PieceSearch Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector U/P TAB CONT L/P

¥0.3944
详情
176271-9

176271-9

te connectivity / amp

Conn Housing PL 2 POS 3.96mm Crimp ST Cable Mount Loose Piece 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. AMP UNIVERSAL POWER PLUG 2P AC Power Plugs & Receptacles AMP UNIVERSAL POWER PLUG 2P 3.5, 3.96 & 6.2 Centerline 600 V, 12 A max. Product Highlights:HousingPlugPackaging Method = Loose Piece3.96 mm Centerline, MatrixNumber of Positions = 2Search Keywords:cabled power, soft shell, power pin & socket, U-P, wire to board, high current, PWRSIGALLP, universal power, grace inertia connector

¥0.6120
详情

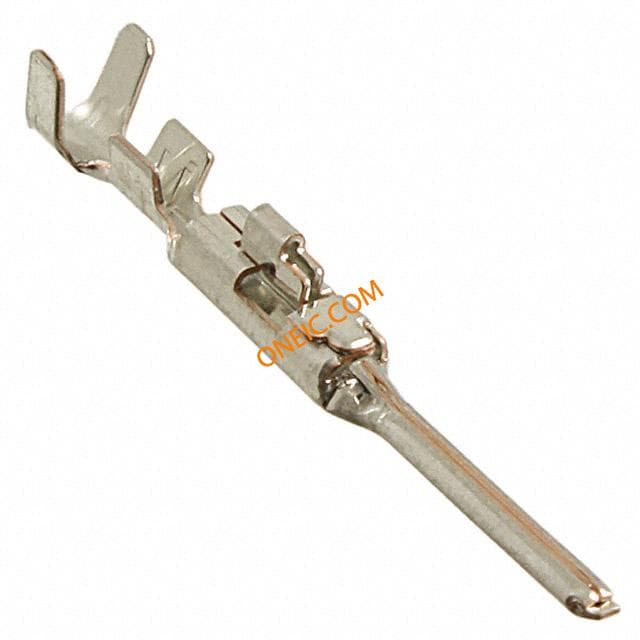

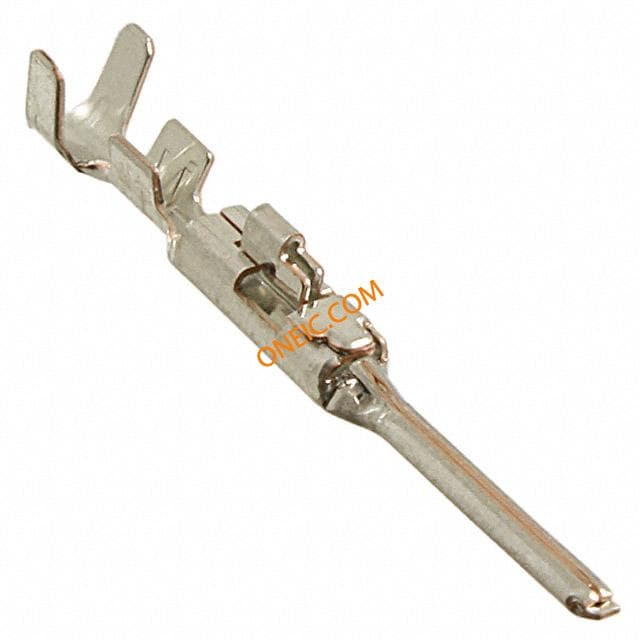

175153-1
